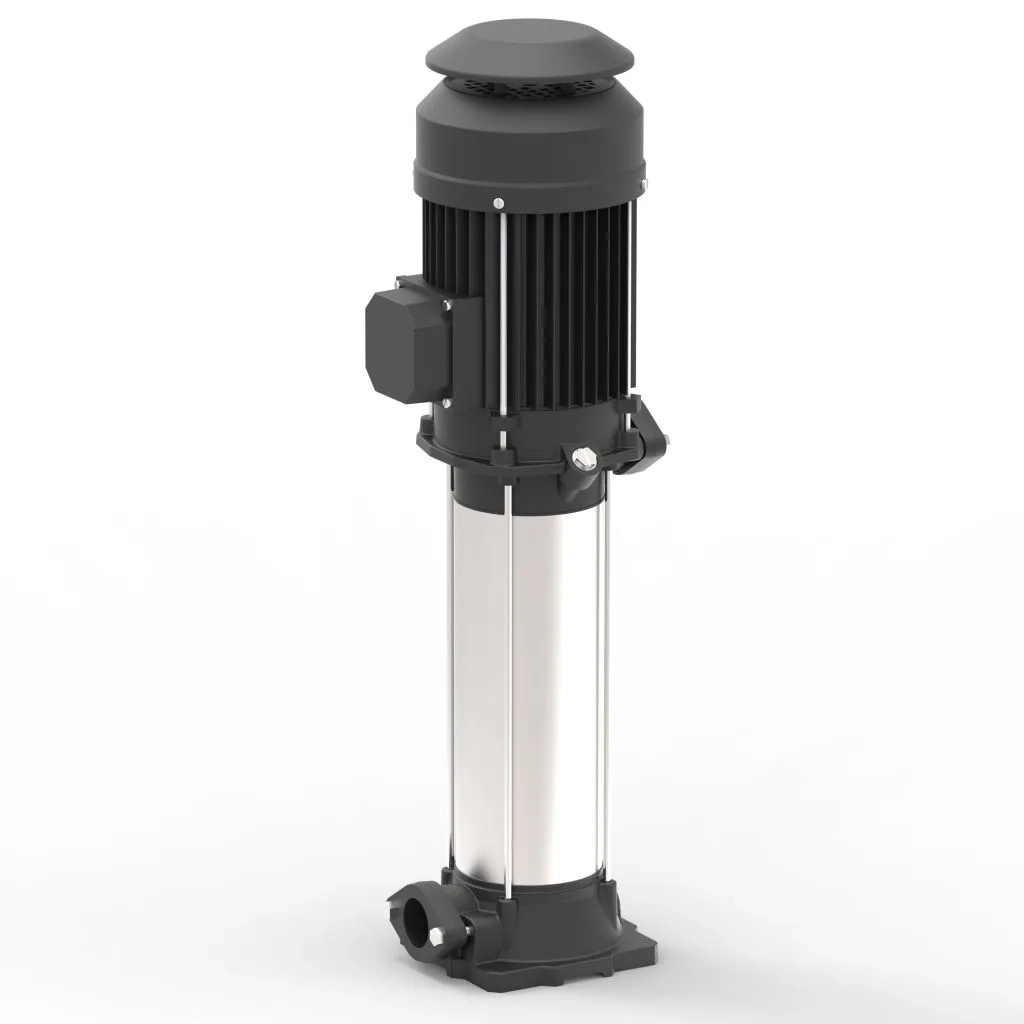

Vertical Multi-Stage Centrifugal Pumps (MVNA series)
- Pump body shall be made of stainless steel & impellers shall be made of stainless steel AISI 304. Motor shaft is made of stainless steel AISI 420. Guide vane is made of glass reinforced PPO.
- The pump is fitted with a maintenance-free, mechanical shaft seal.
- Motor and pump are close coupled in a convenient and compact design for quick installation in limited space.
- All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.
Variety & Range
- Flow range: 0.5 to 4 m³/h
- Head range: up to 139 metres
- Rating: 1 phase – 0.37 to 1.50 kW & 3 phase – 0.37 to 1.50 kW
- Rated speed: 2900 rpm
