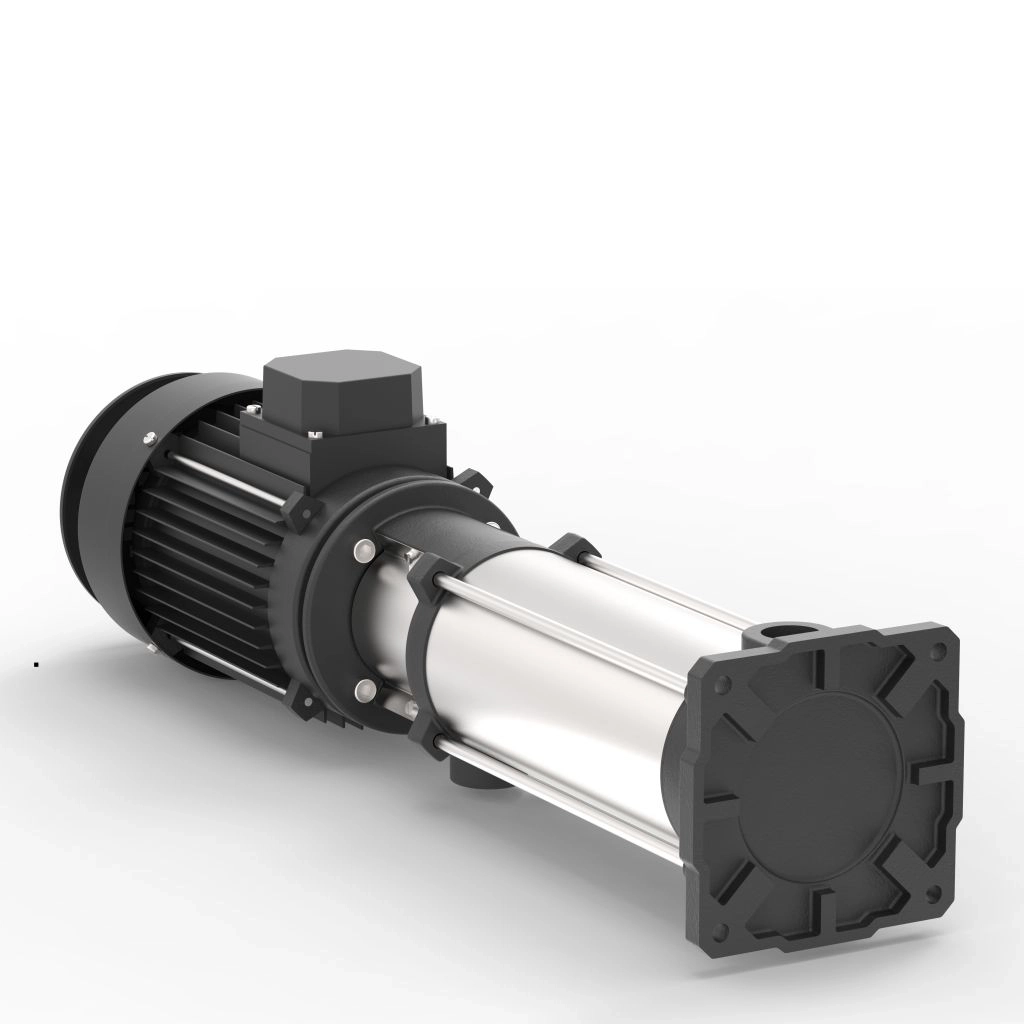

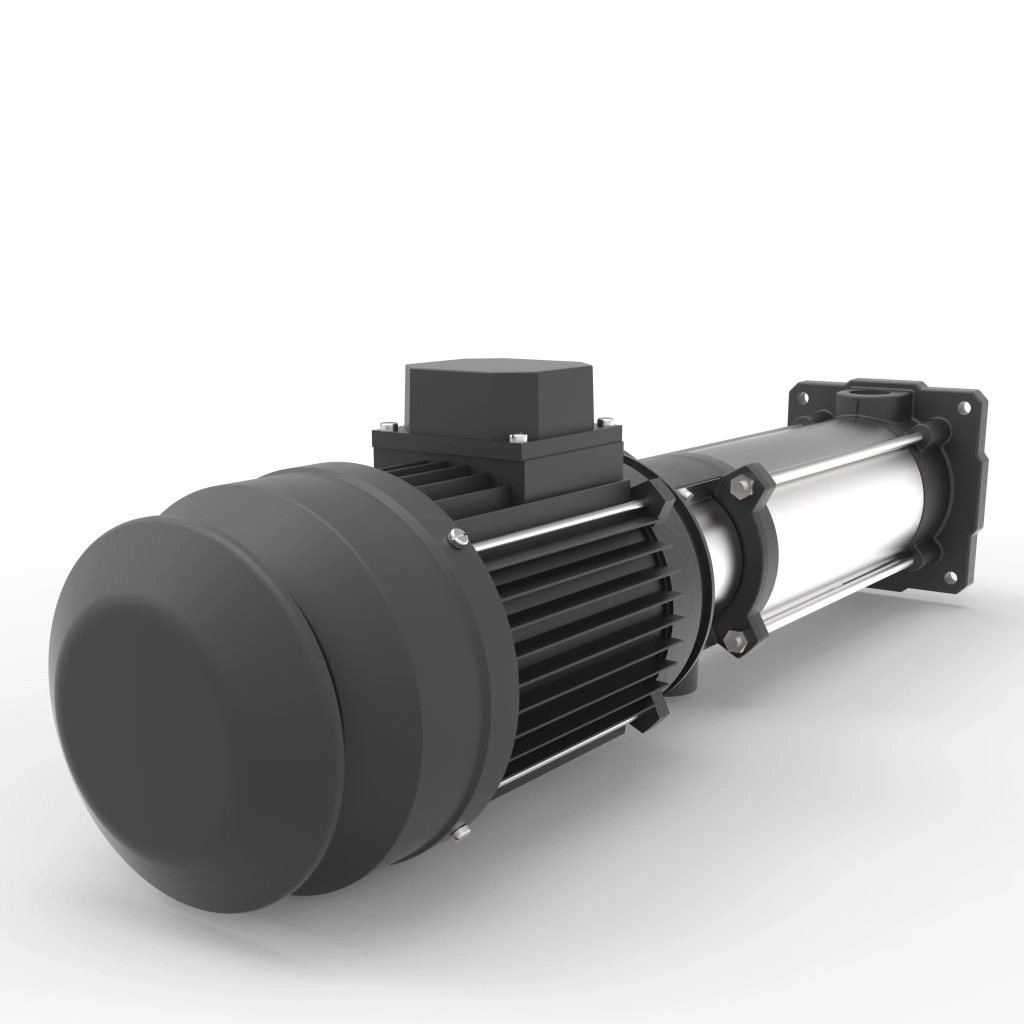

Vertical Multi-stage Centrifugal Pumps (LHR series)

Features

  • Pump body shall be made of stainless steel & impellers shall be made of stainless steel AISI 304. Motor shaft is made of stainless steel AISI 420. Guide vane is made of glass reinforced PPO.
  • The pump is fitted with a maintenance-free, mechanical shaft seal.
  • Motor and pump are close coupled in a convenient and compact design for quick installation in limited space.
  • All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness

Variety & Range

  • Flow range: 0.5 to 4 m³/h
  • Head range: up to 197 metres
  • Rating: 1 phase – 0.75 to 2.20 kW & 3 phase – 0.75 to 2.20 kW
  • Rated speed: 2900 rpm

Applications

Water Supply

Irrigation

Industries
