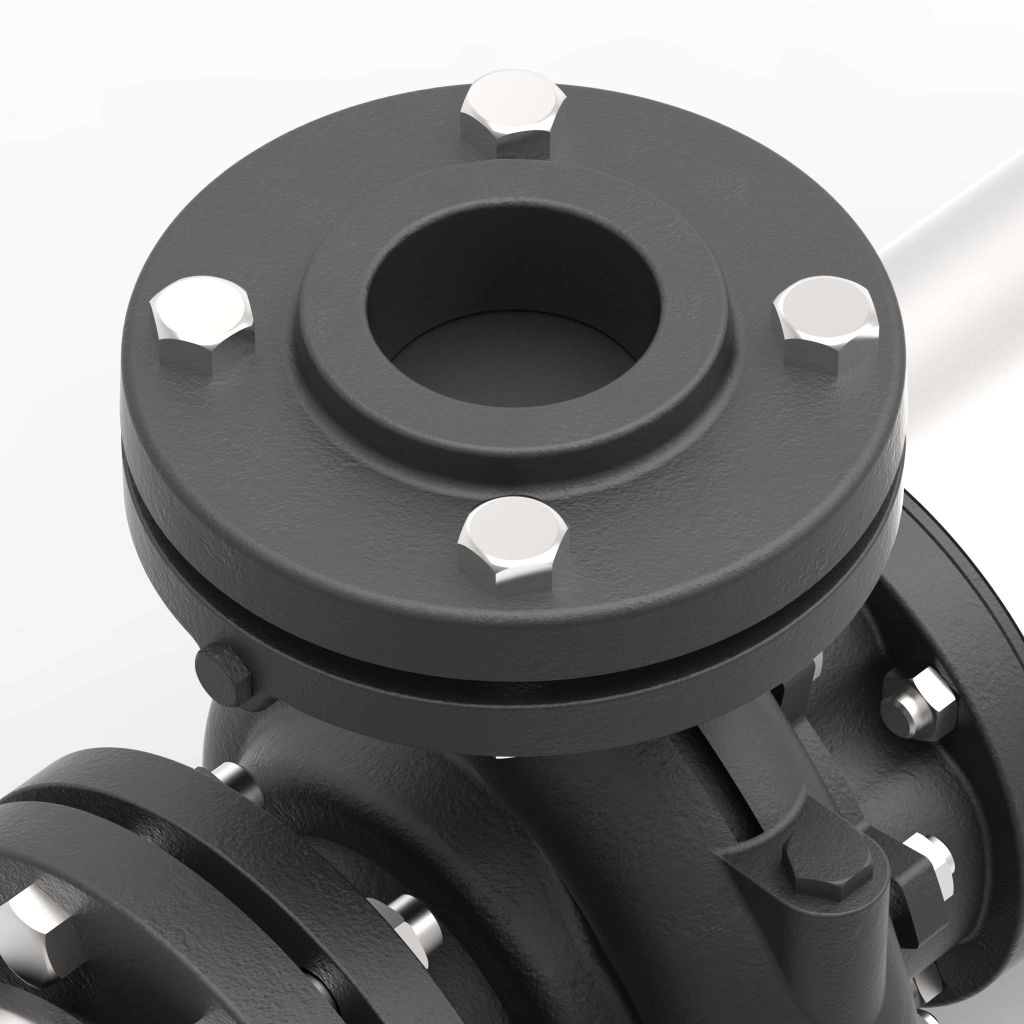

Submerged centrifugal pumps (LHM & LVM Series)


  • The pump casing shall be of cast iron grade of FG 260 as per IS 210/ISO 186 with axial suction and radial discharge port, dynamically balanced impeller, steel shaft.
  • The Pump shaft sealing shall be by mechanical shaft seal of Carbon /Ceramic/NBR/AISI 304 material of construction and suitable for liquid temperature from 0 to +50 deg. C.
  • The pump end shall be close coupled to a rewindable water filled and water lubricated submersible motor with S1 duty and IP68 protection, 3 phase, 415 volts, 50 Hz and 60 Hz power supply.
  • All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.

Variety & Range

  • Flow range: up to 270 m³/h
  • Head range: up to 95 metres
  • Rating: 3 phase – 2.2 to 22.0 kW
  • Rated speed: 2900 rpm



Water Supply



Commercial Buildings
