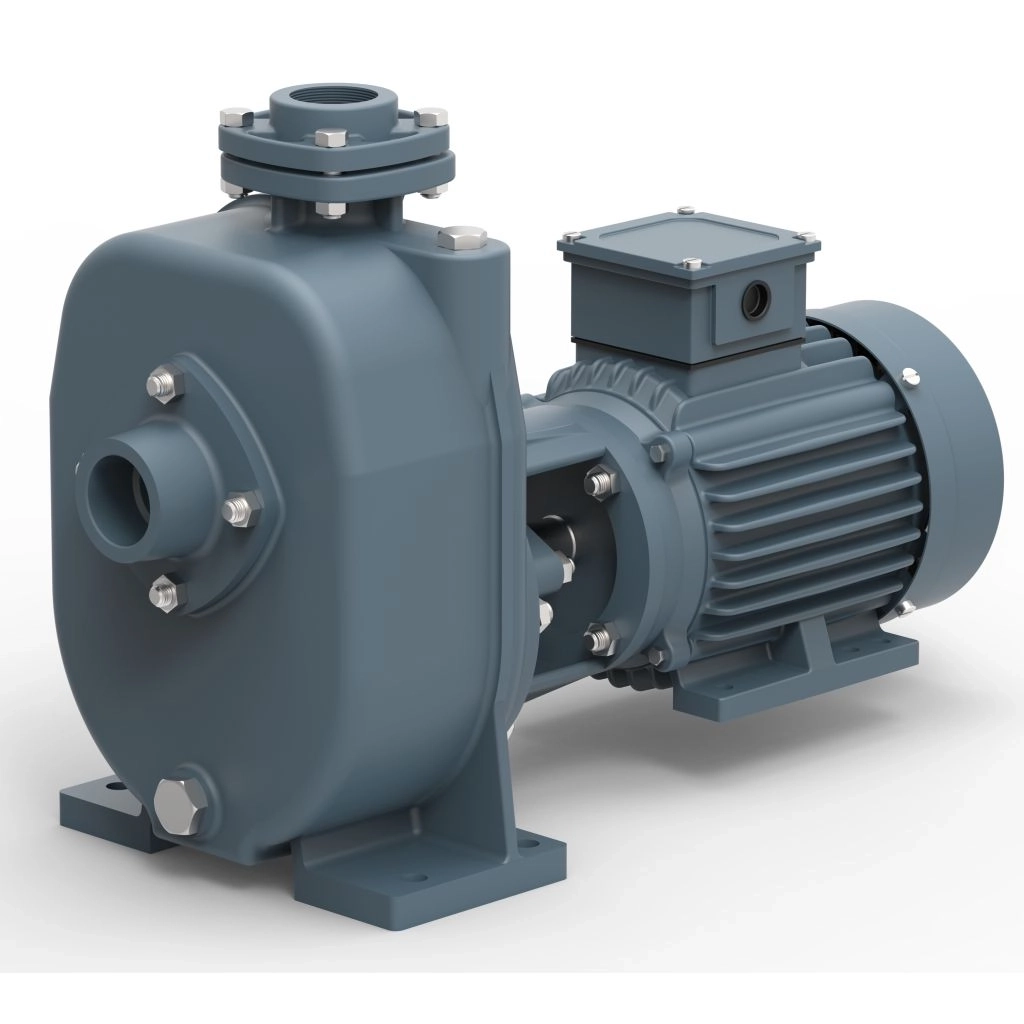

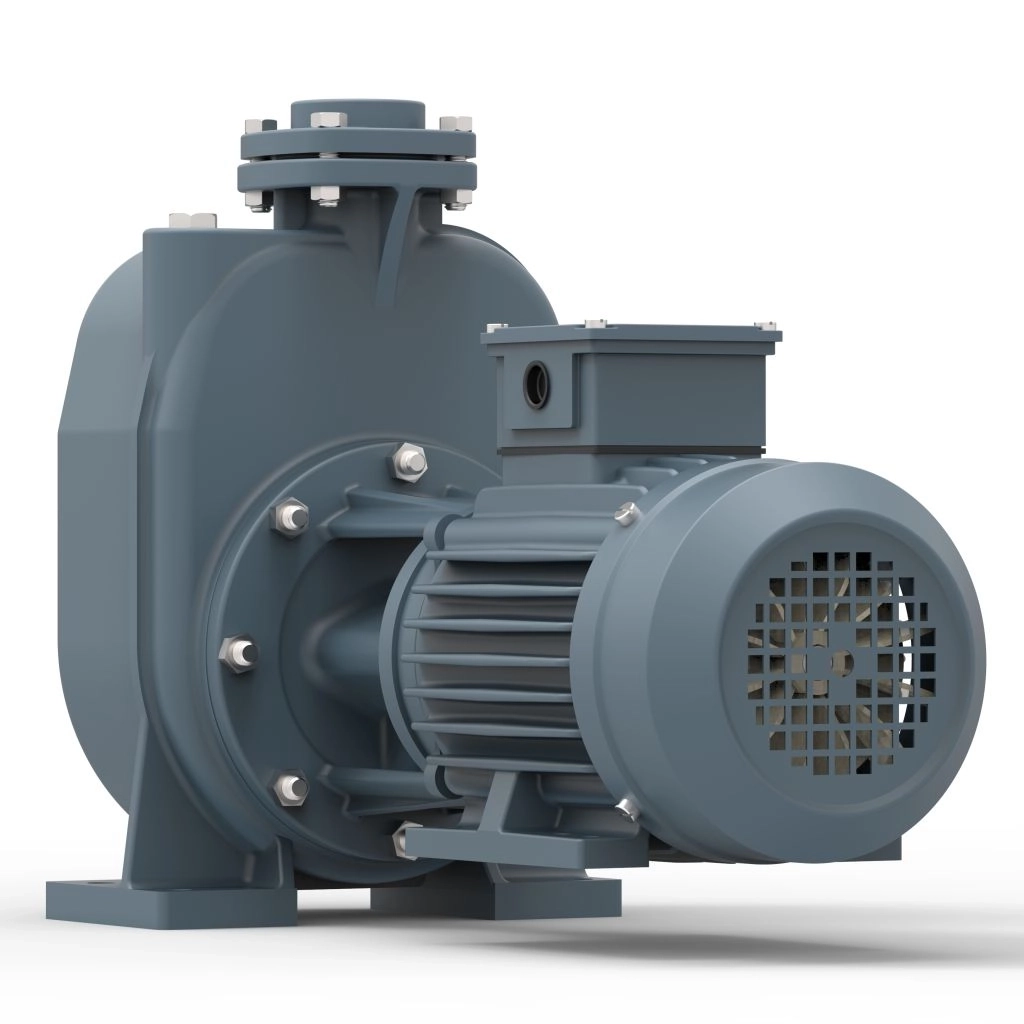

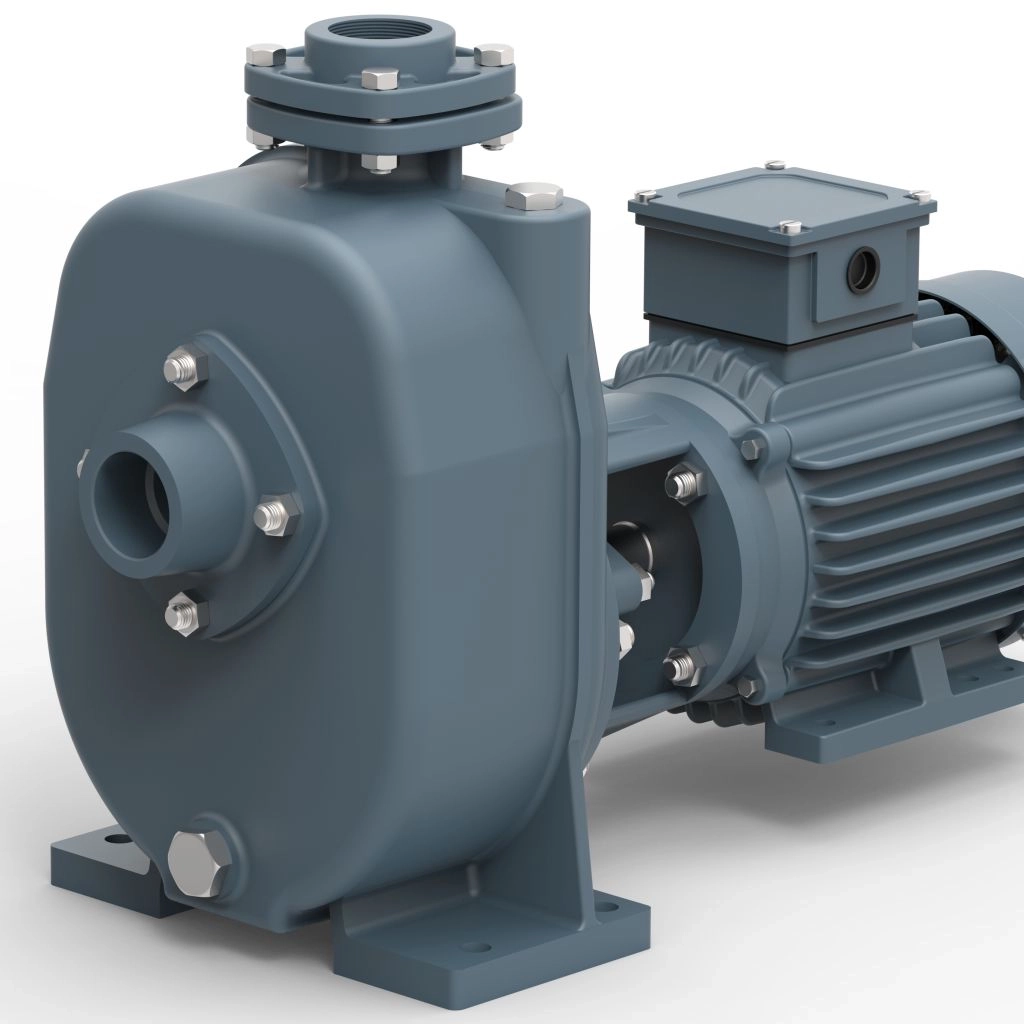

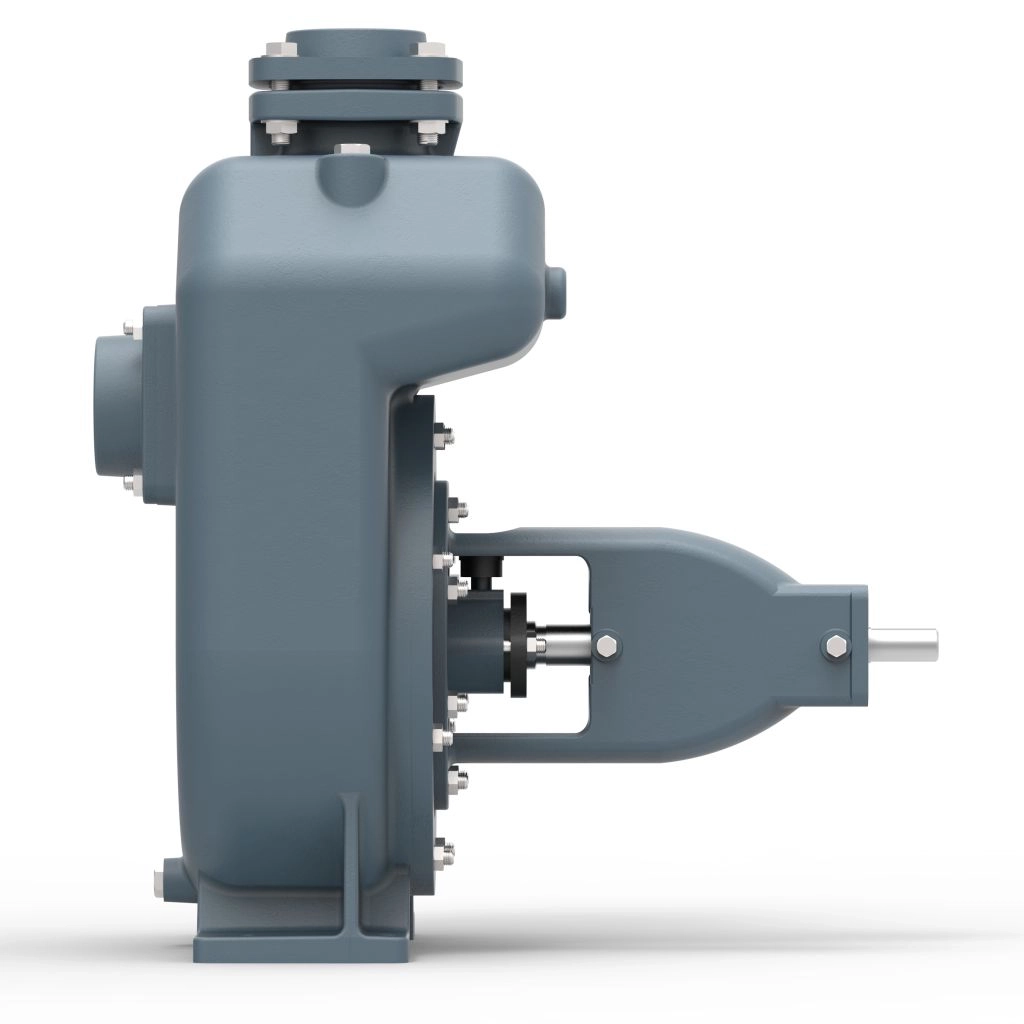

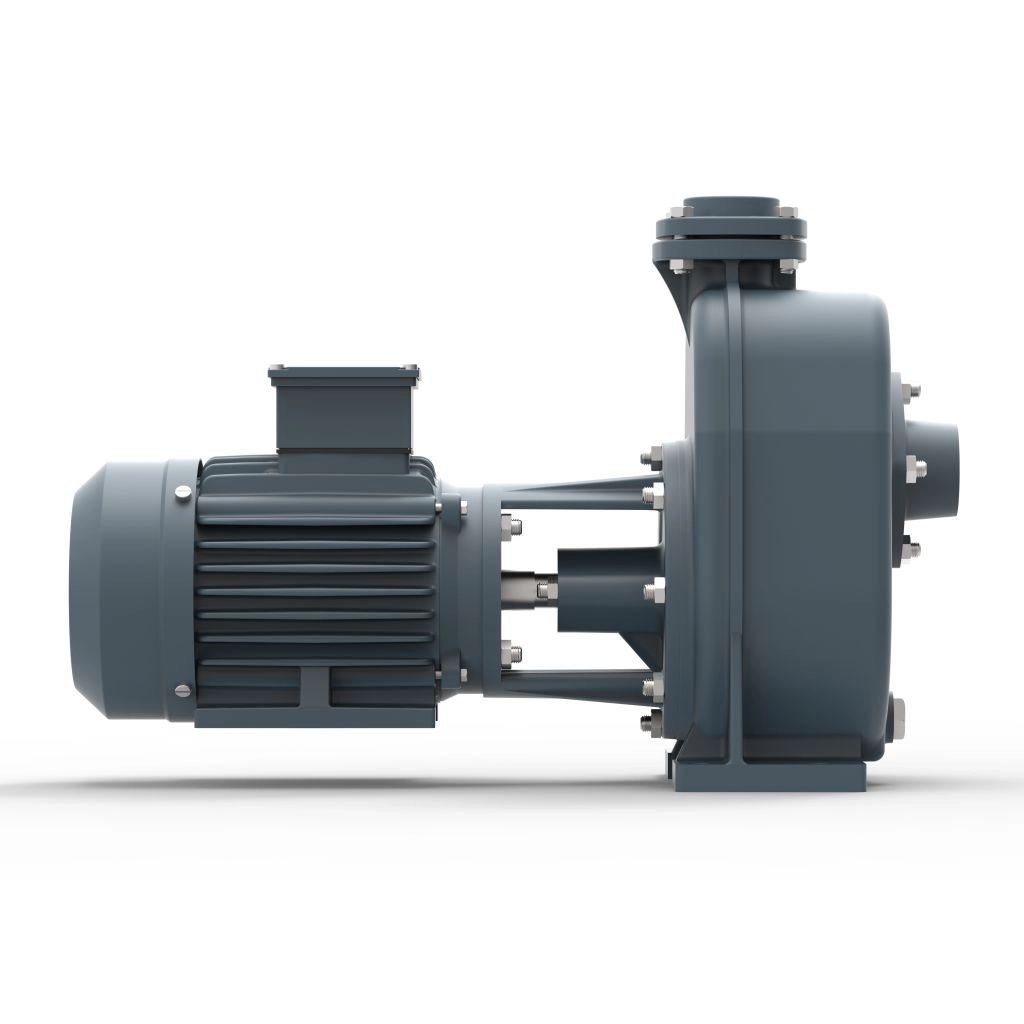

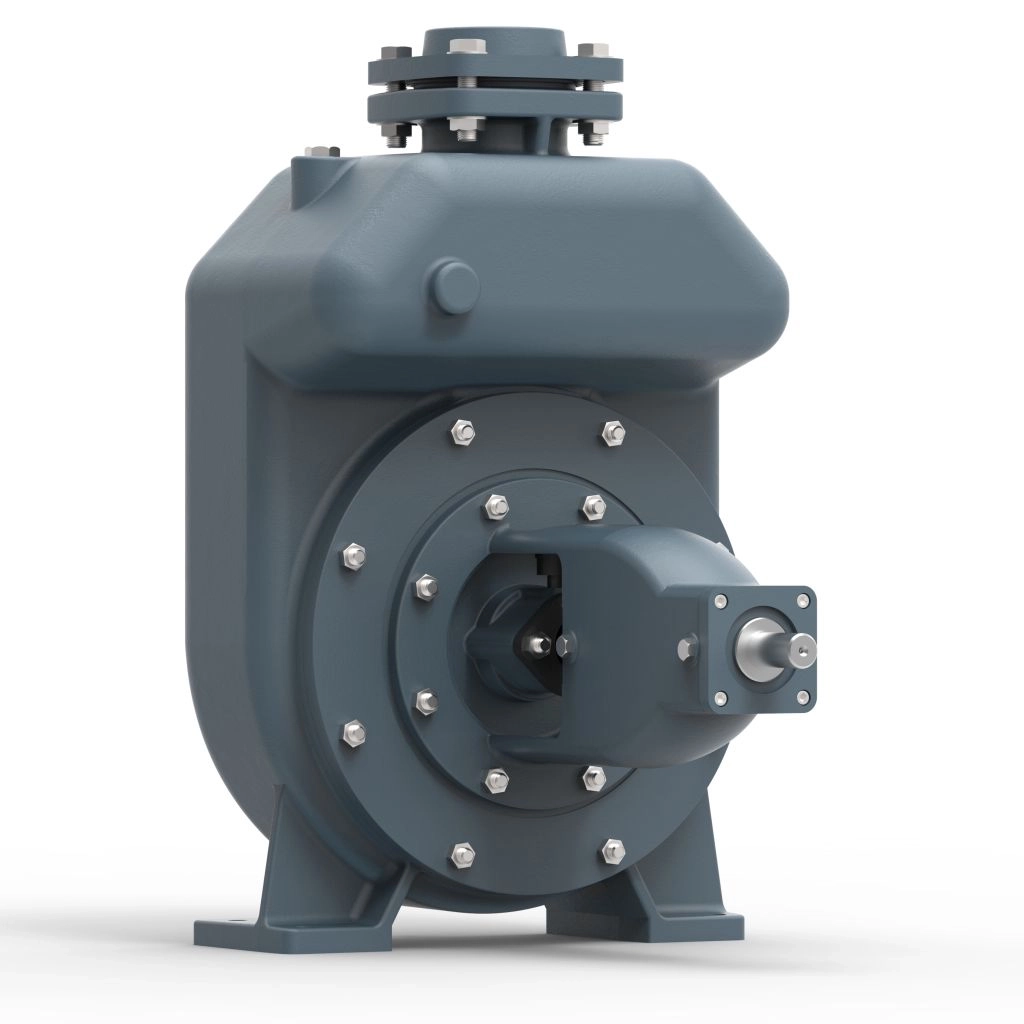

Self-priming, Solids Handling, Close Coupled Pumps (LBM series)

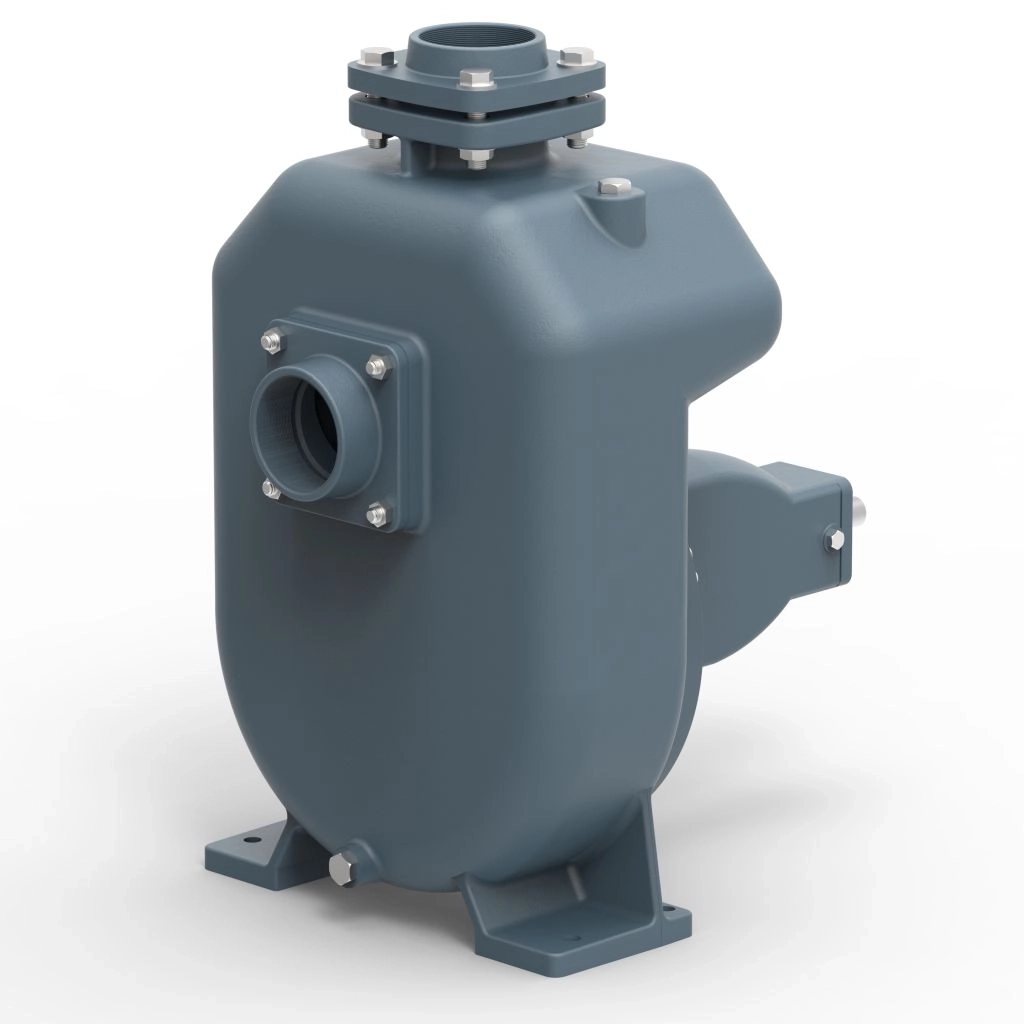

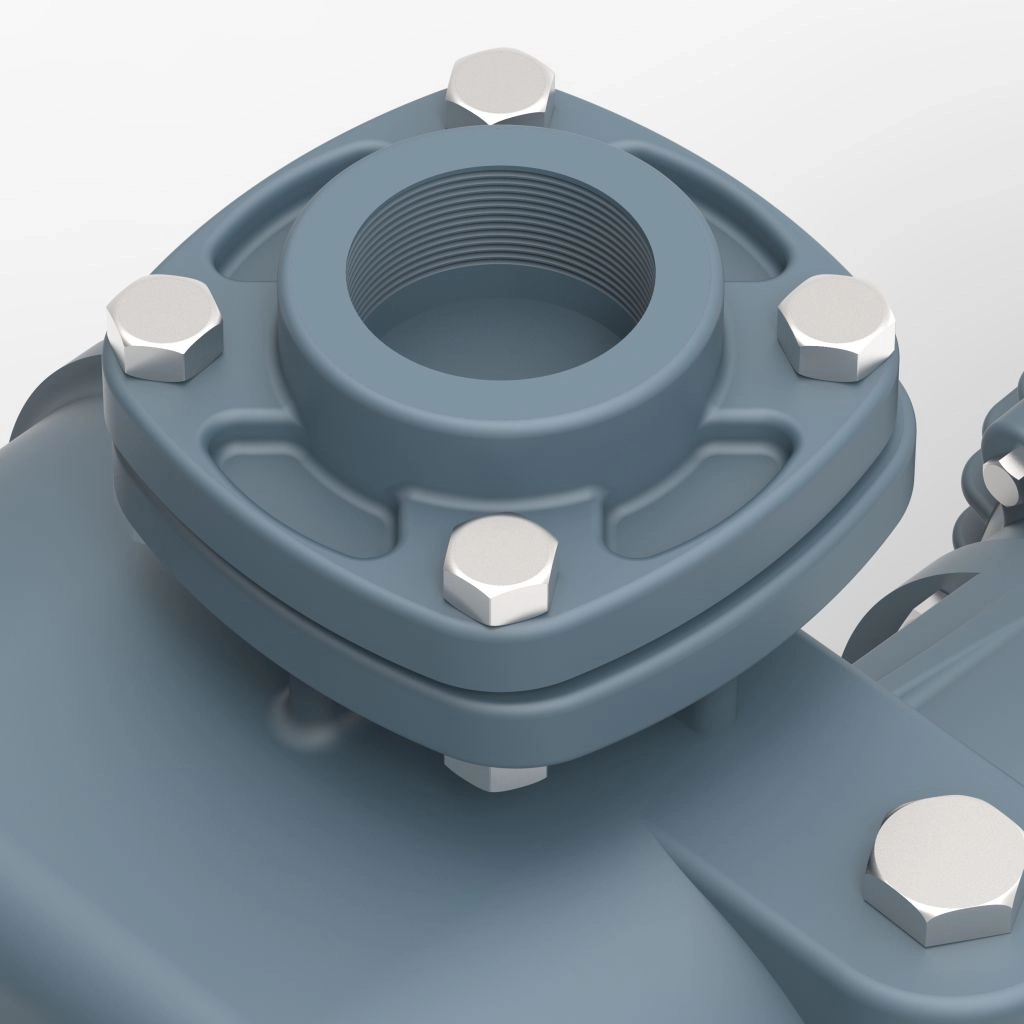

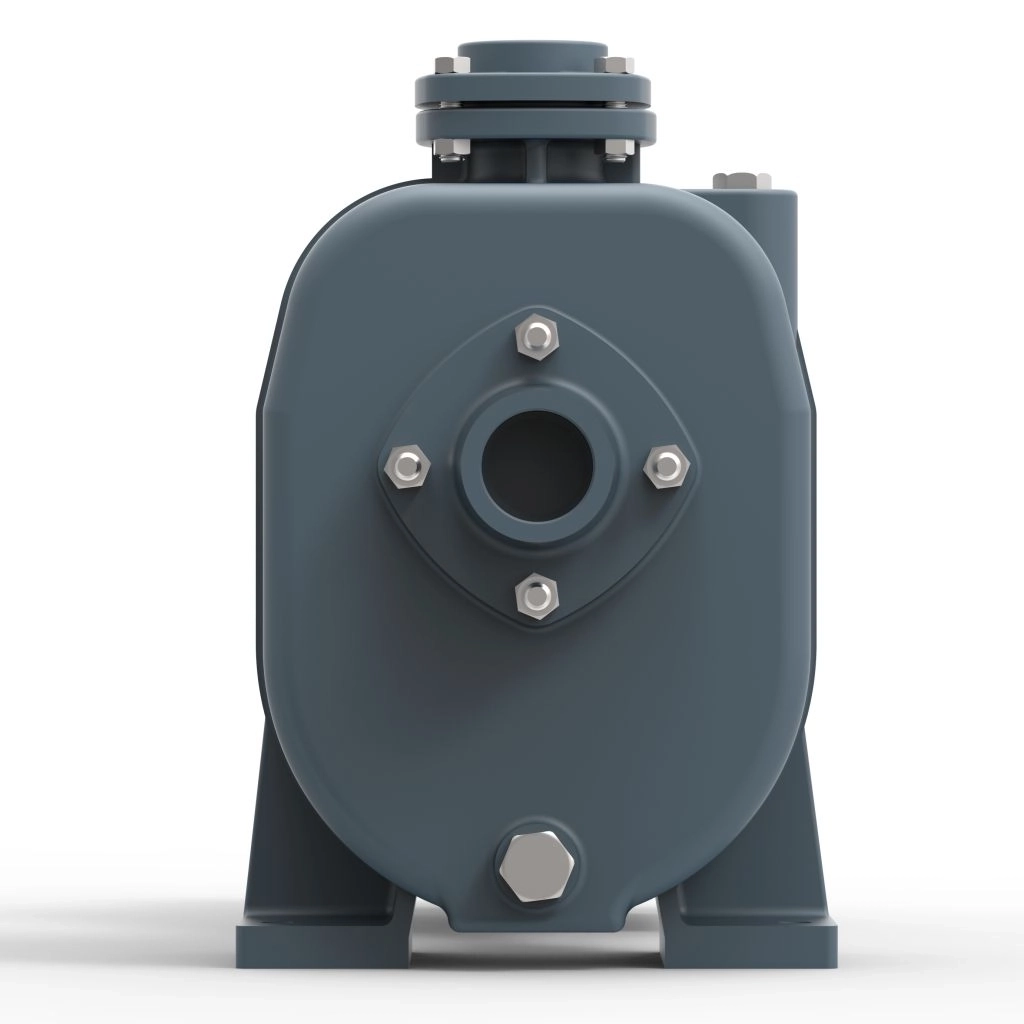

  • The pump casing shall be of Cast Iron material grade FG 260 as per IS 210 / ISO 186 and shall have axial suction and radial discharge port..
  • The pumps shall have non-clogging open type impeller with material of construction of Cast Iron FG 260 (standard supply), CF8 & CF8M.

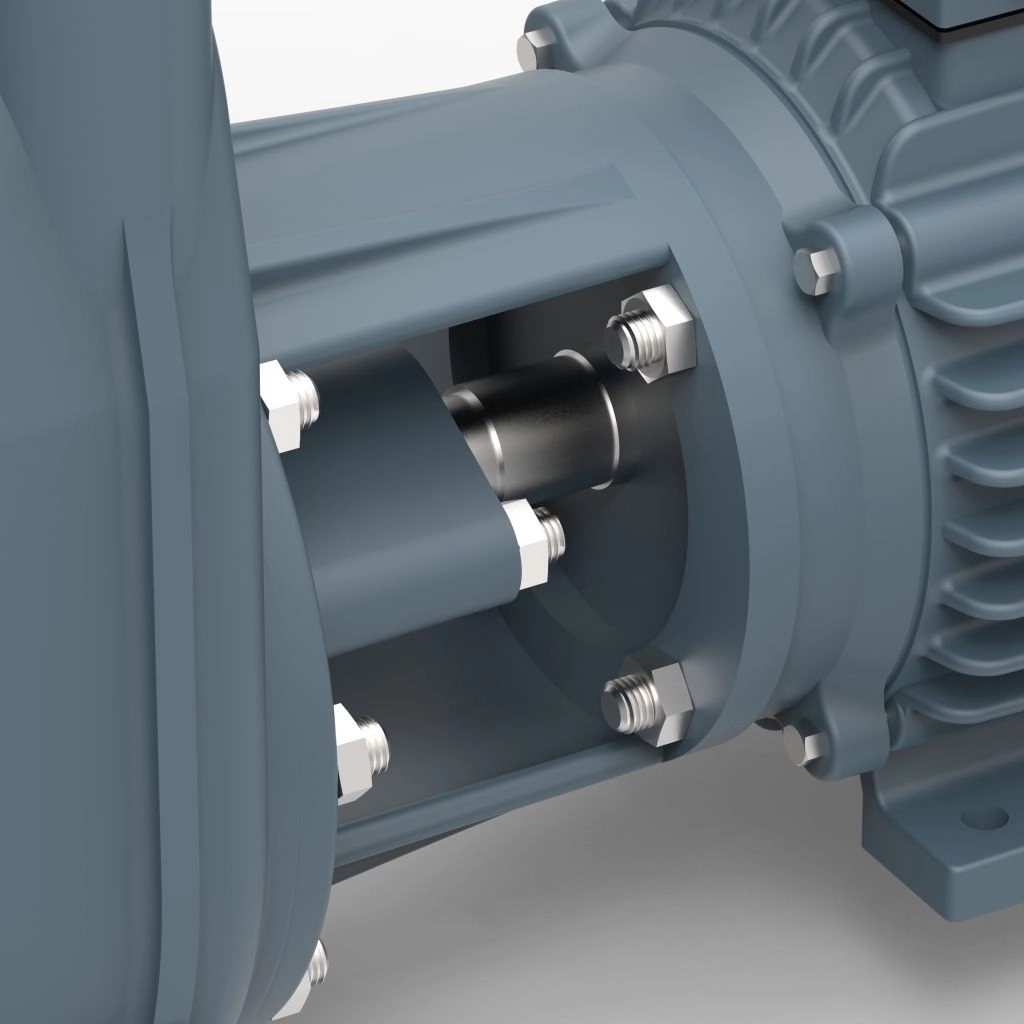

  • The pump shaft sealing will be with gland packing except for pump up to 1 hp rating shall be with mechanical shaft seal.
  • The Motor will be suitable for the following power supply 3 phase, 415 volts, 50 Hz & 1 phase, 240 volts, 50 Hz.

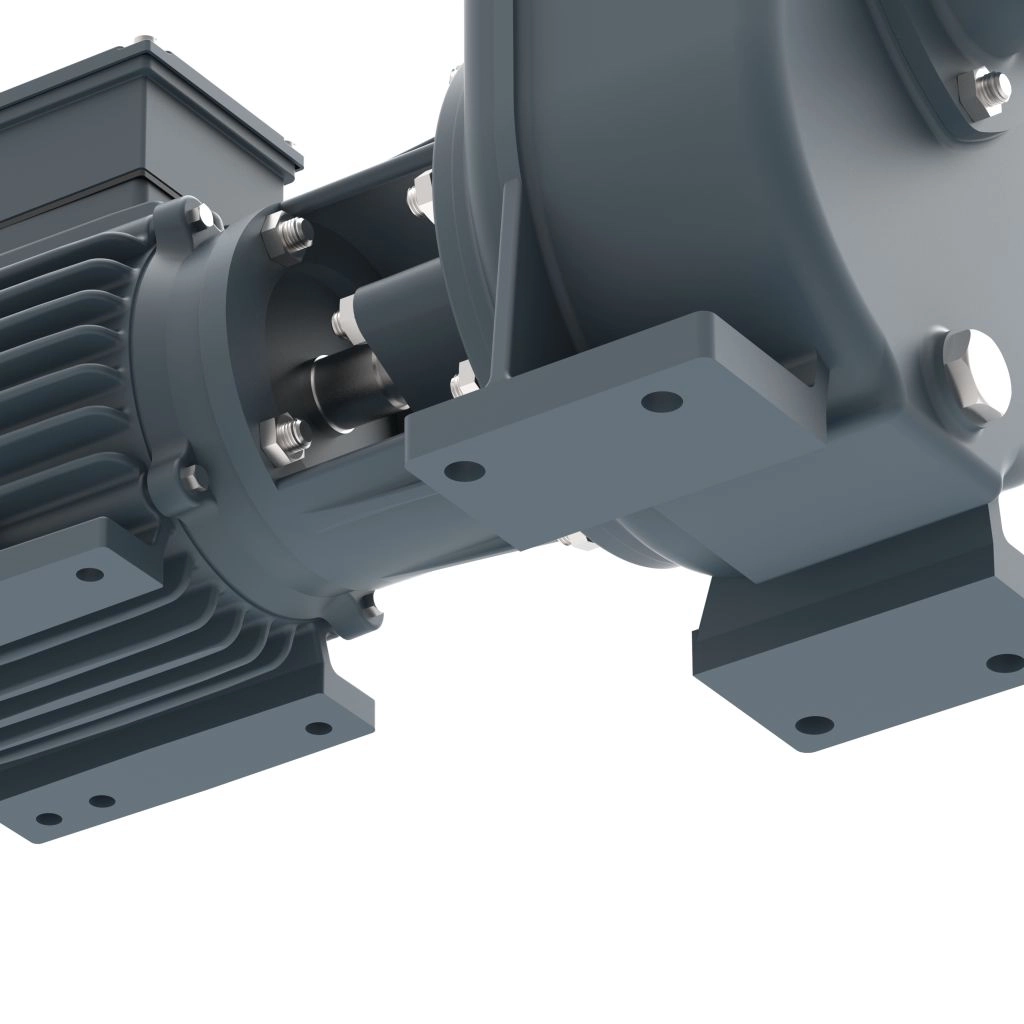

  • The pump shall have back pull out design so as to enable the rotating parts to be removed and serviced without dismantling the suction and discharge pipe work.

Variety & Range

  • Flow range: up to 305 m³/h
  • Head range: up to 37 metres
  • Rating: 1 phase – 0.75 to 2.2 kW & 3 phase – 0.75 to 18.5 kW
  • Rated speed: 2900, 1450 rpm
