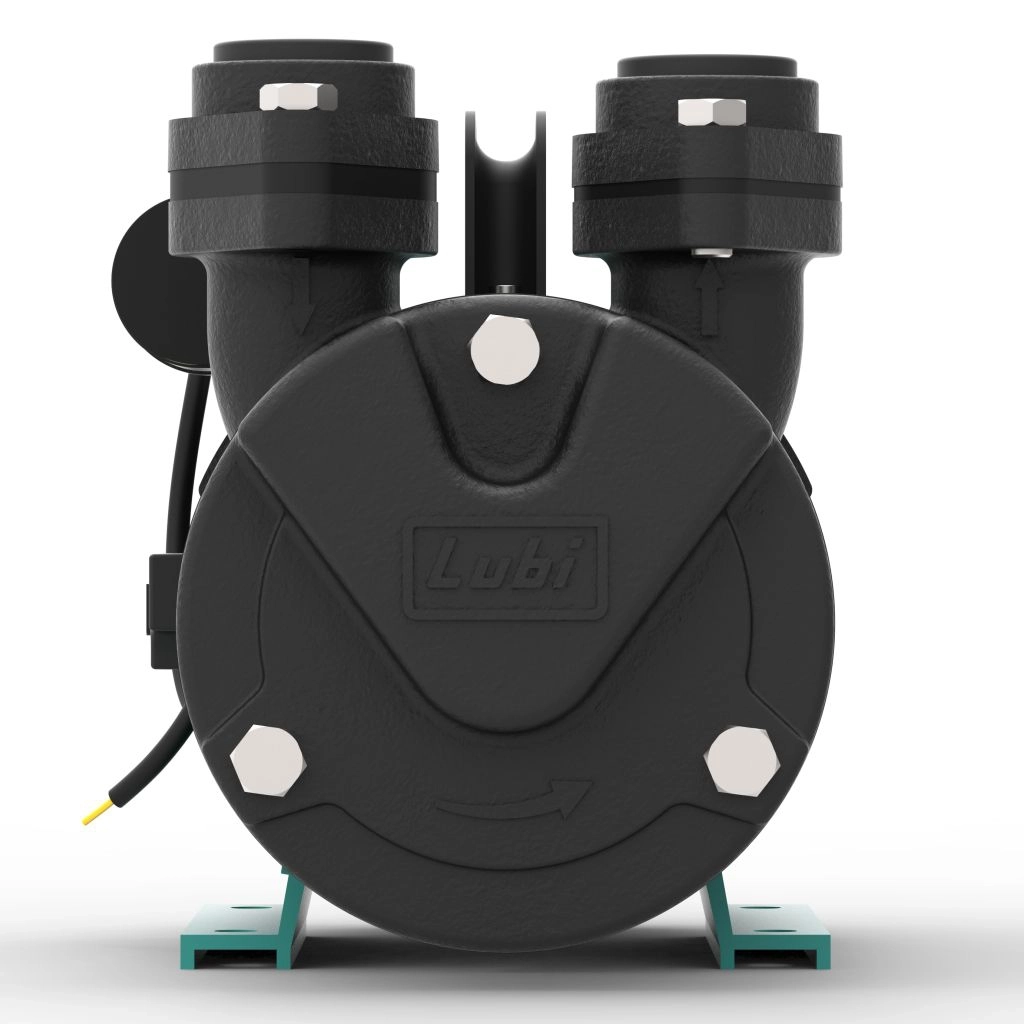

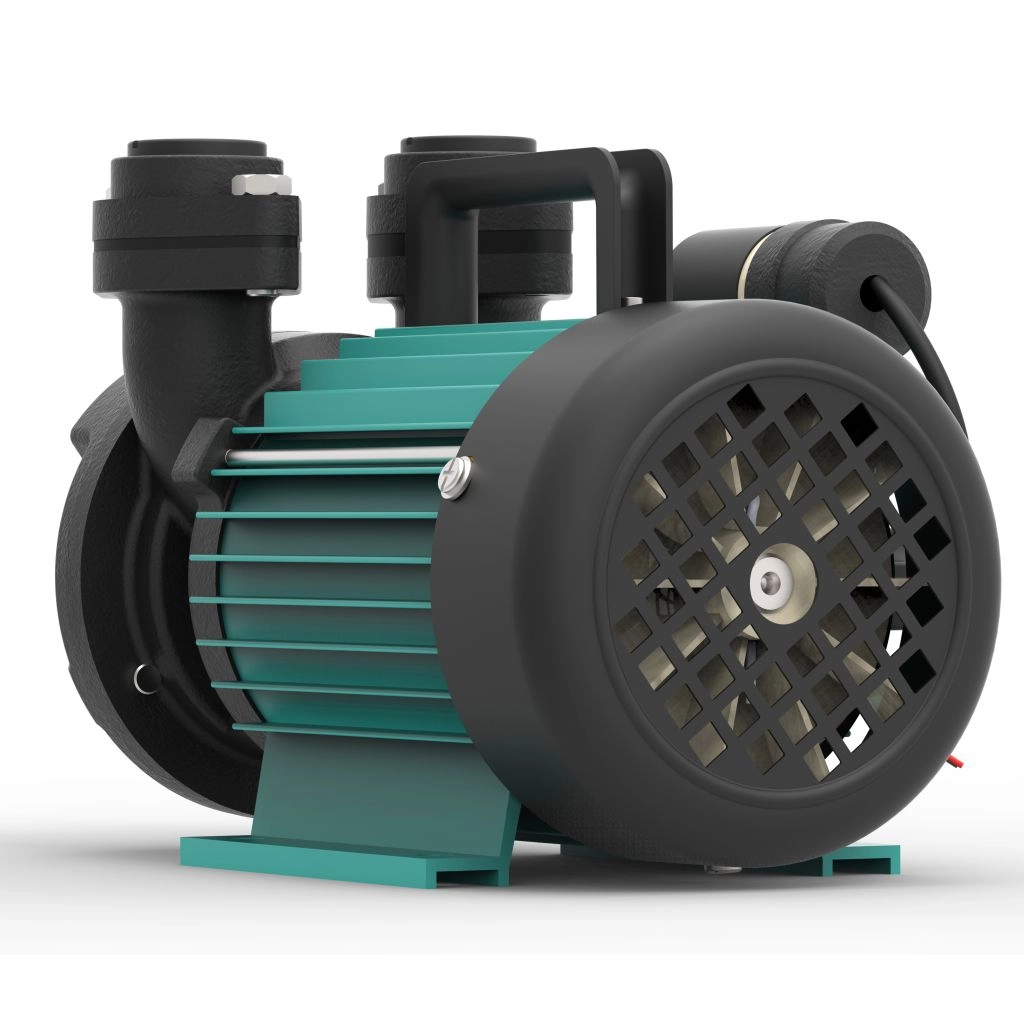

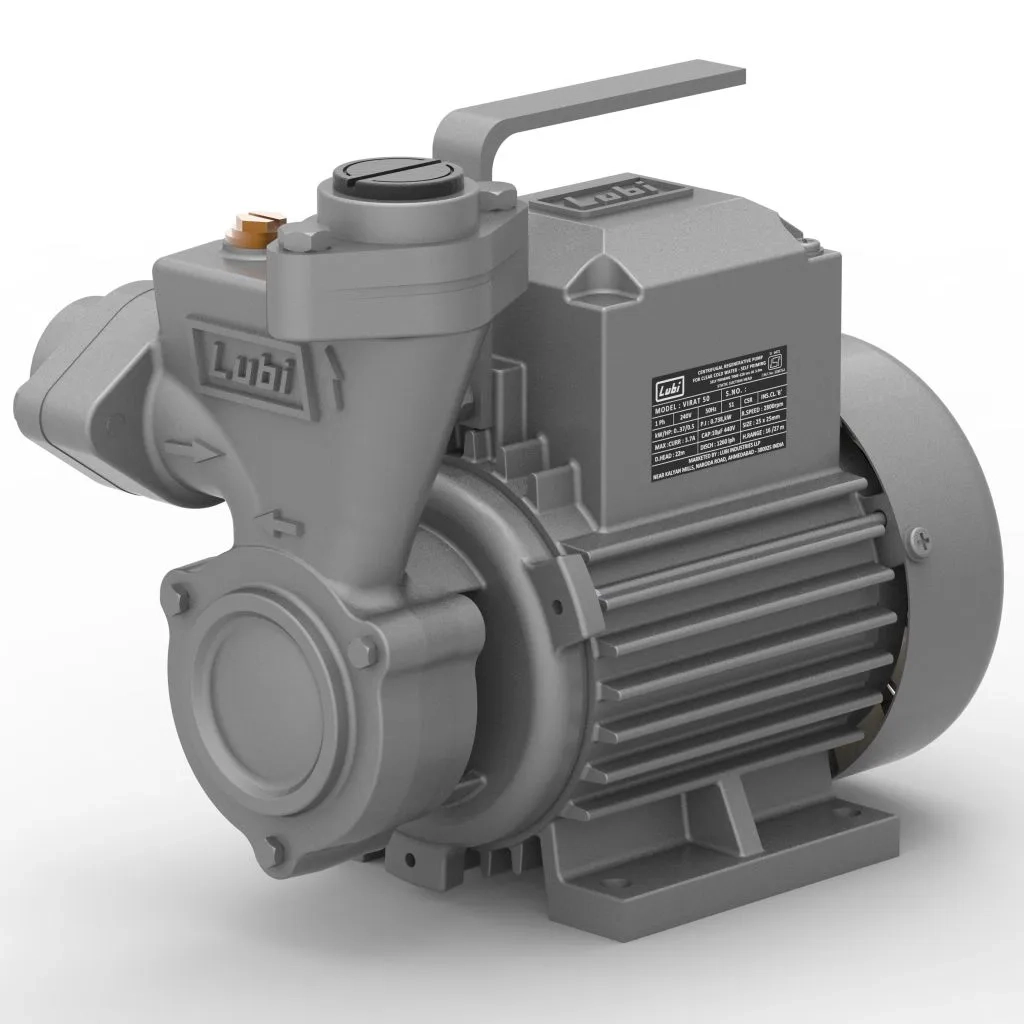

Self Priming Monoblock Pumps (MDH, MDL & VIRAT Series)

Download Brochure

Features

Pump casing, Adapter, Endshields are made of close grained cast iron of high tensile strength.
High Tensile Brass Impeller is used to give trouble free service. Motor windings are vacuum impregnated with synthetic varnish for better moisture resistance.
Superior Mechanical Seal for longer life and effective sealing against water leakage.
Double Shielded pre-lubricated anti-friction ball bearings are fitted at both ends to withstand radial and axial loads.
Better insulating materials are used so that pumpset can withstand high temperature rise.
Self-Priming up to 7.5 meters at mean sea level.
Fitted with Thermal Overload Protector (TOP).
Sheet Metal Drip-proof Fan cooled motor body. (MDL-2SP, 4SP) Totally Enclosed Fan Cooled (TEFC) construction resists dust, moisture. (MDL-2TC, 4TC).
Top mounted terminal box with covered capacitors.

Variety & Range

Flow range: up to 4500 LPM
Head range: up to 40 metres
Rating: 0.37 to 0.75 kW
Rated speed: 2900 rpm

Applications

Lawns & Garden

Hospital

Restaurants

Water Supply

Industrial

Resorts
