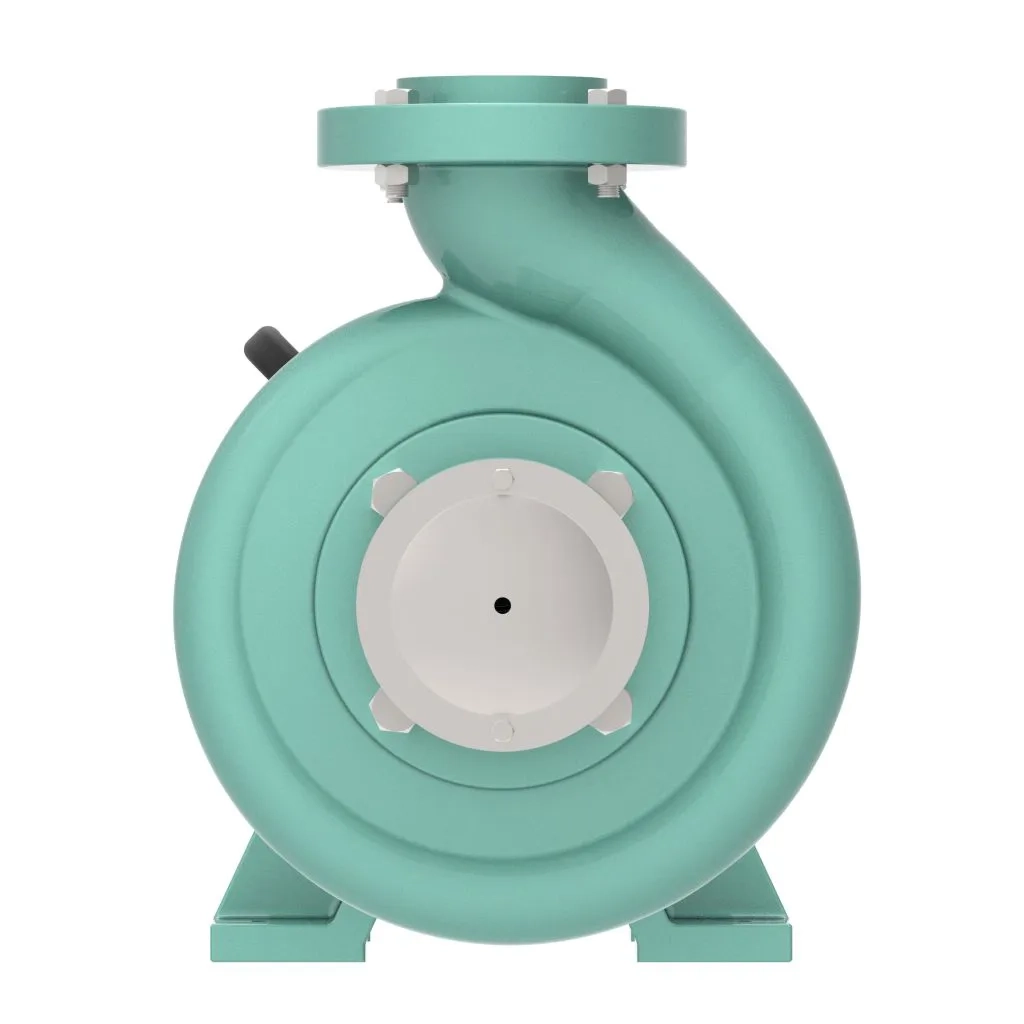

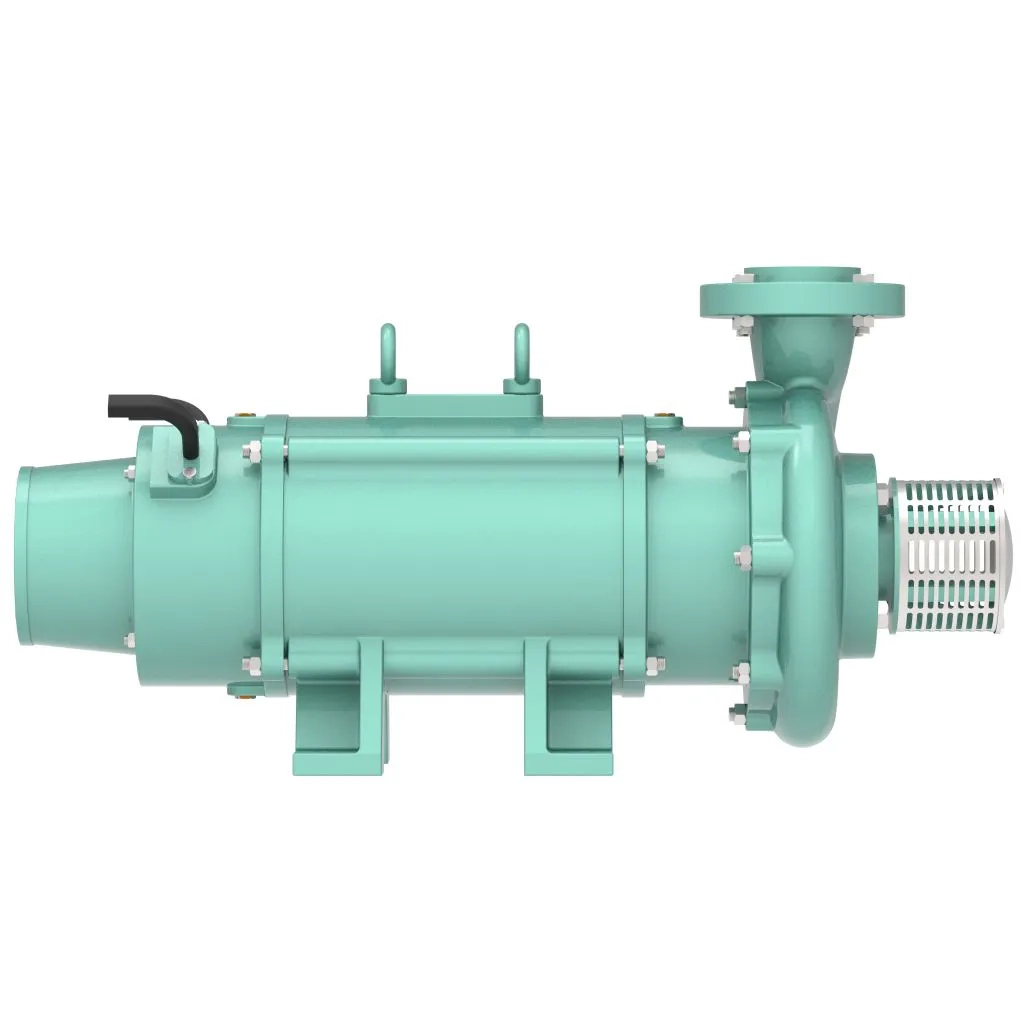

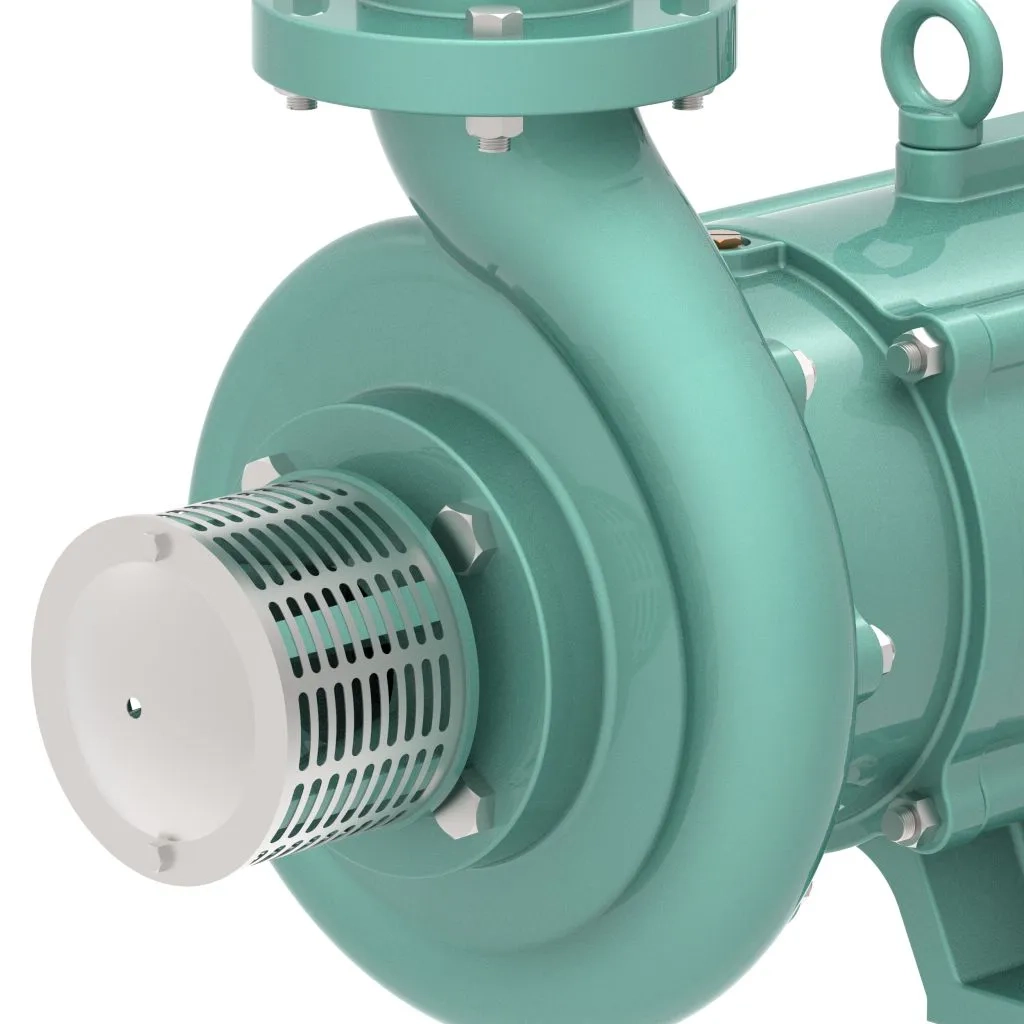

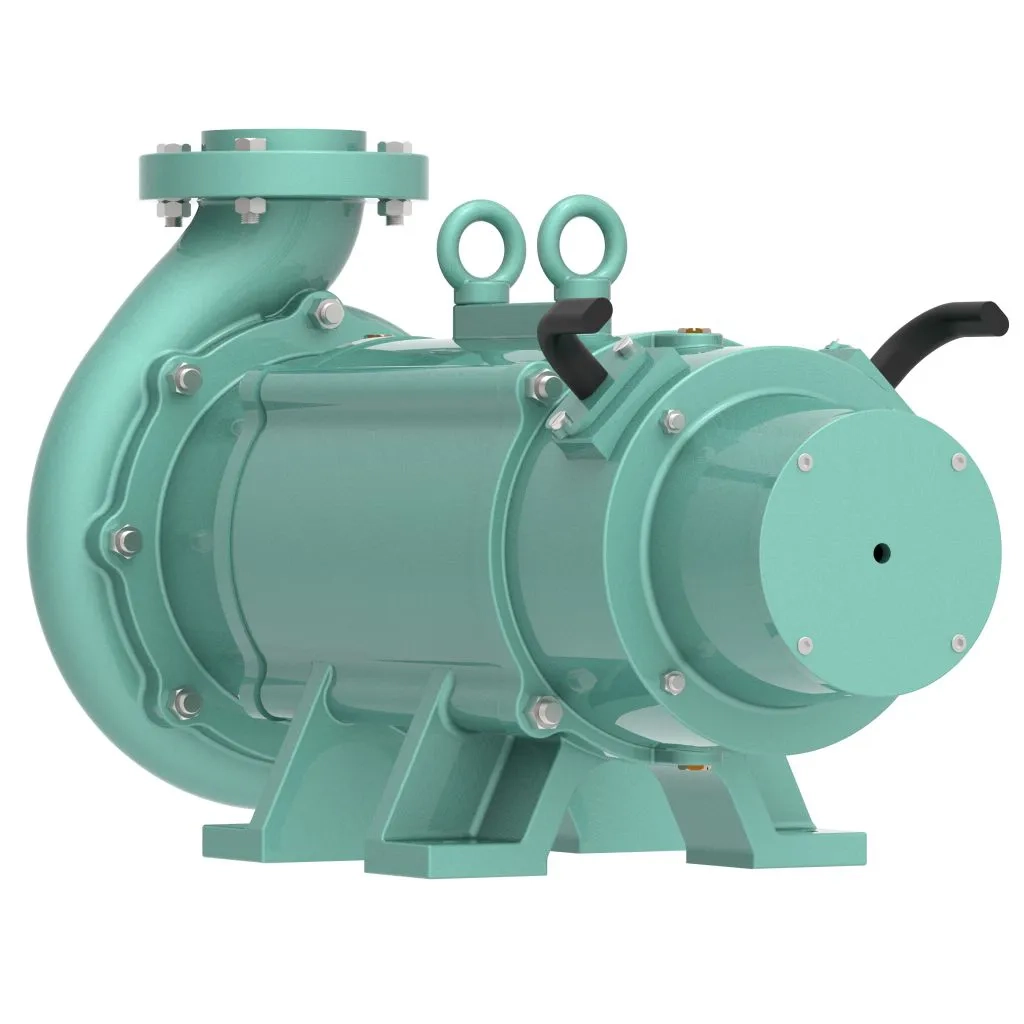

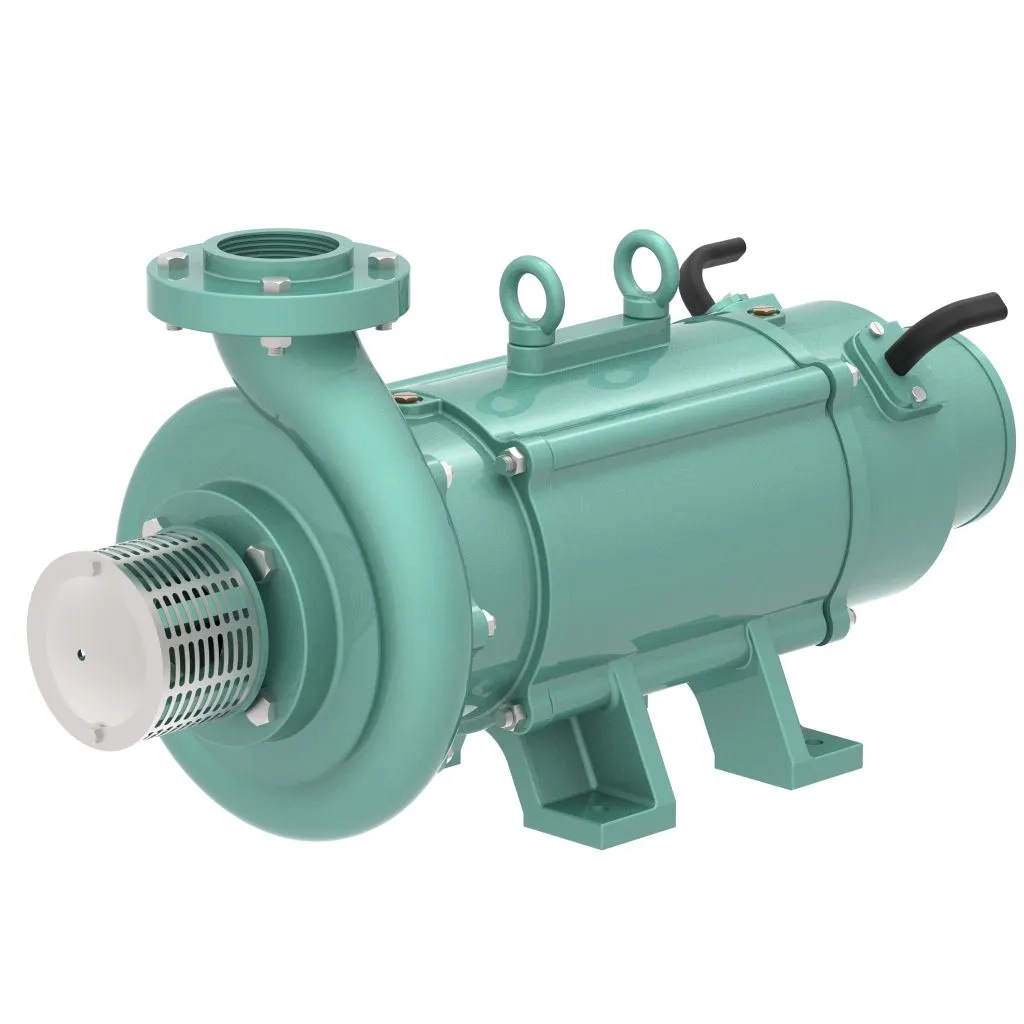

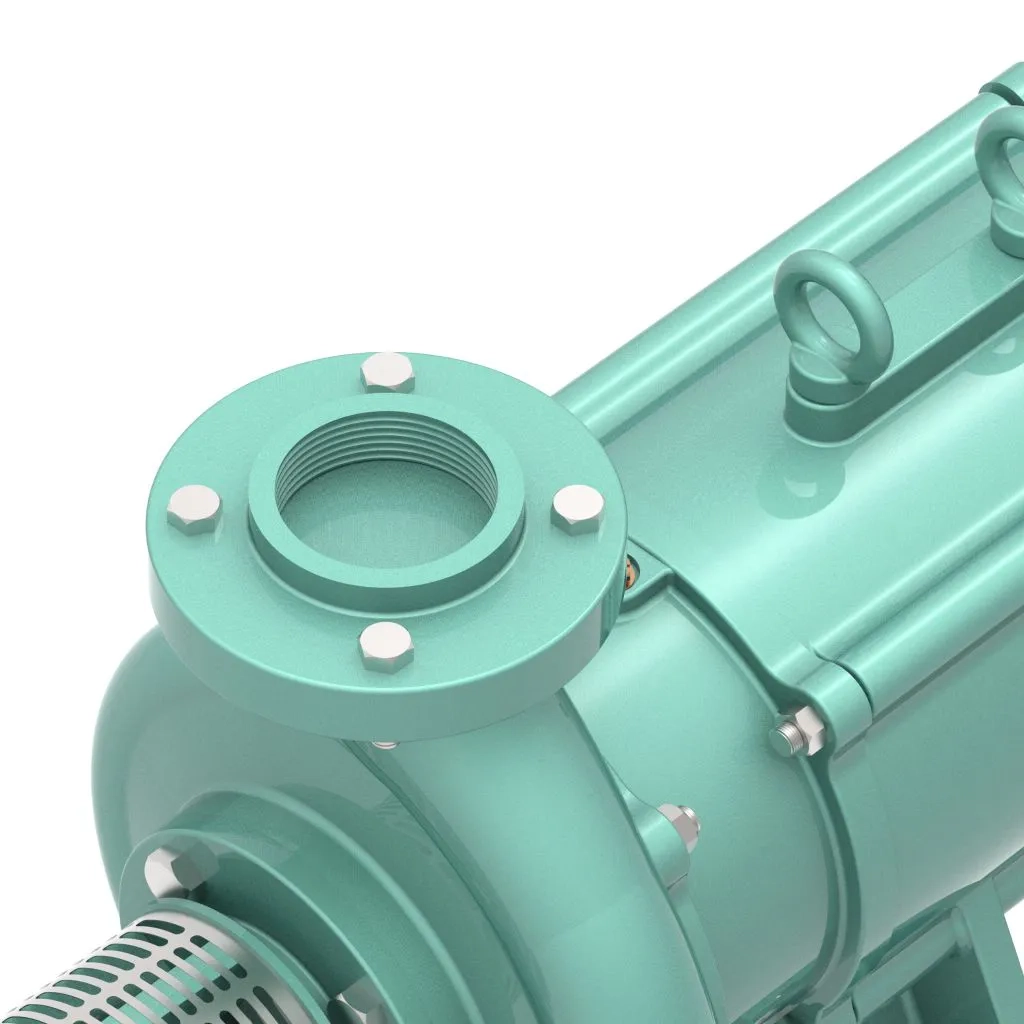

Horizontal Openwell Submersible Pumpsets (LHS series)
Features
- Pumpset shall be designed to withstand voltage drops to 320 volts.
- It has well designed sleeve and thrust bearing of adequate capacity for longer life.
- High operating efficiencies of pumpset result into high water discharge rate and lower power bills.
- All components are precisely machined on modern precision machine tools to give you years of reliable operation.
- Stator and rotor of the monoset are vacuum impregnated with synthetic varnish and epoxy coated for corrosion resistance.
- All rotating components are dynamically balanced to ensure long bearing life and vibration free smooth operation.
- All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.
Variety & Range
- Flow range: up to 310 m³/h
- Head range: up to 72 metres
- Rating: 0.37 – 22 kW
- Rated speed: 2900 rpm
Applications
![Apartments](/media/uploads/applications/icons/apartments.webp)
Apartments
![Water Supply](/media/uploads/applications/icons/WATER_SUPPLY.webp)
Water Supply
![Irrigation](/media/uploads/applications/icons/irrigation_40LfGmr.webp)
Irrigation
![Commercial Buildings](/media/uploads/applications/icons/commercial_buildings.webp)
Commercial Buildings
![Fountains](/media/uploads/applications/icons/fountains.webp)
Fountains
![Canal / River Belt Irrigation](/media/uploads/applications/icons/canal__river_irrigation.webp)
Canal / River Belt Irrigation
