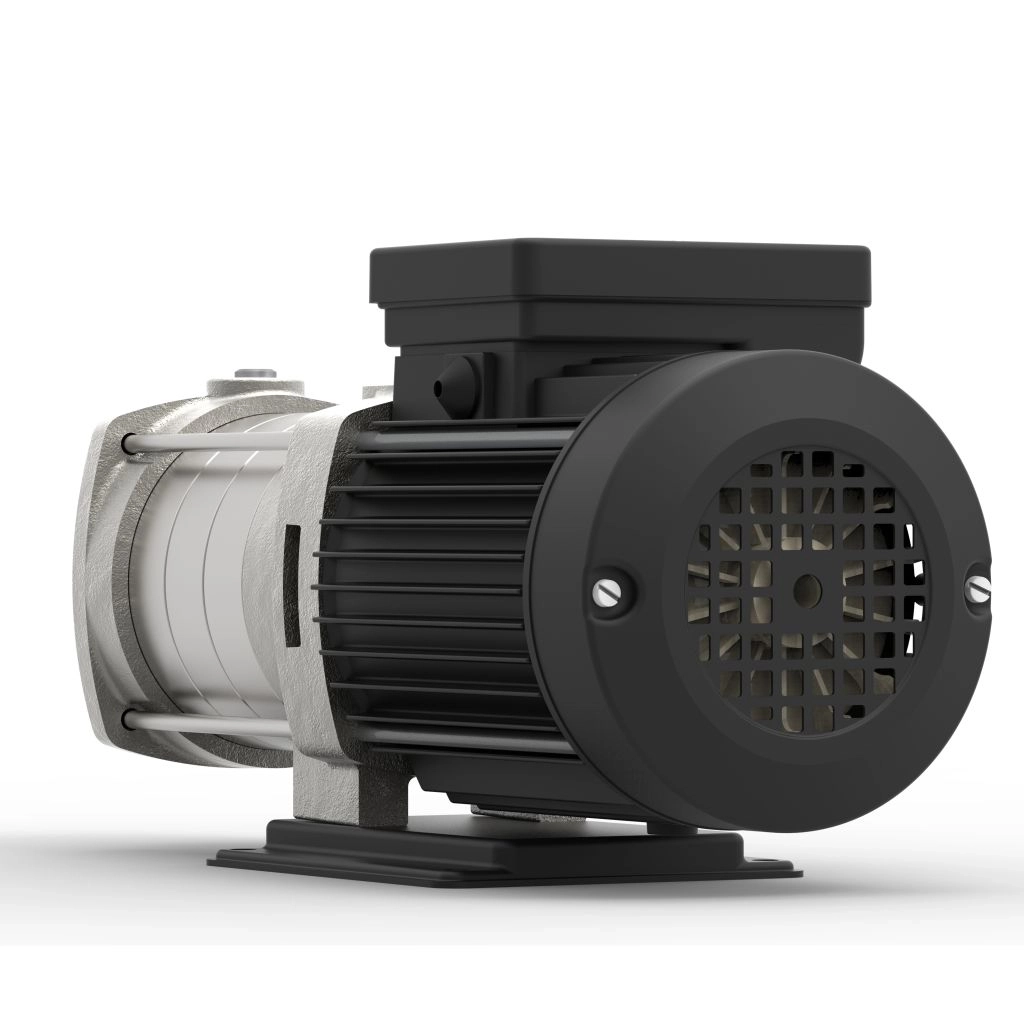

Horizontal multistage centrifugal pumps (MHI/MHN series)
- The pump suction and delivery casings shall be of CF8M Investment Cast and have axial suction and radial discharge port.
- The pump shall have fabricated closed type impellers and bowl diffuser casings made out of AISI 304 Stainless steel sheet metal.
- The Pump shaft sealing will be by mechanical shaft seal of Carbon/Ceramic/Viton/AISI 316 Construction suitable for 10 bar pressure rating and water temperature from 0 to +90 deg. C.
- The pump shall be close coupled with a totally enclosed fan cooled type, 2900 rpm Induction motor with F class insulation, S1 duty and IP55 protection. 1 phase, 230 volts, 50 Hz (Standard Supply), 3 phase, 415 volts, 50 Hz.
- All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.
Variety & Range
- Flow range: 0.5 – 28 m³/h
- Head range: up to 77 metres
- Rating: 0.37 kW to 7.50 kW
- Rated speed: 2900 rpm
