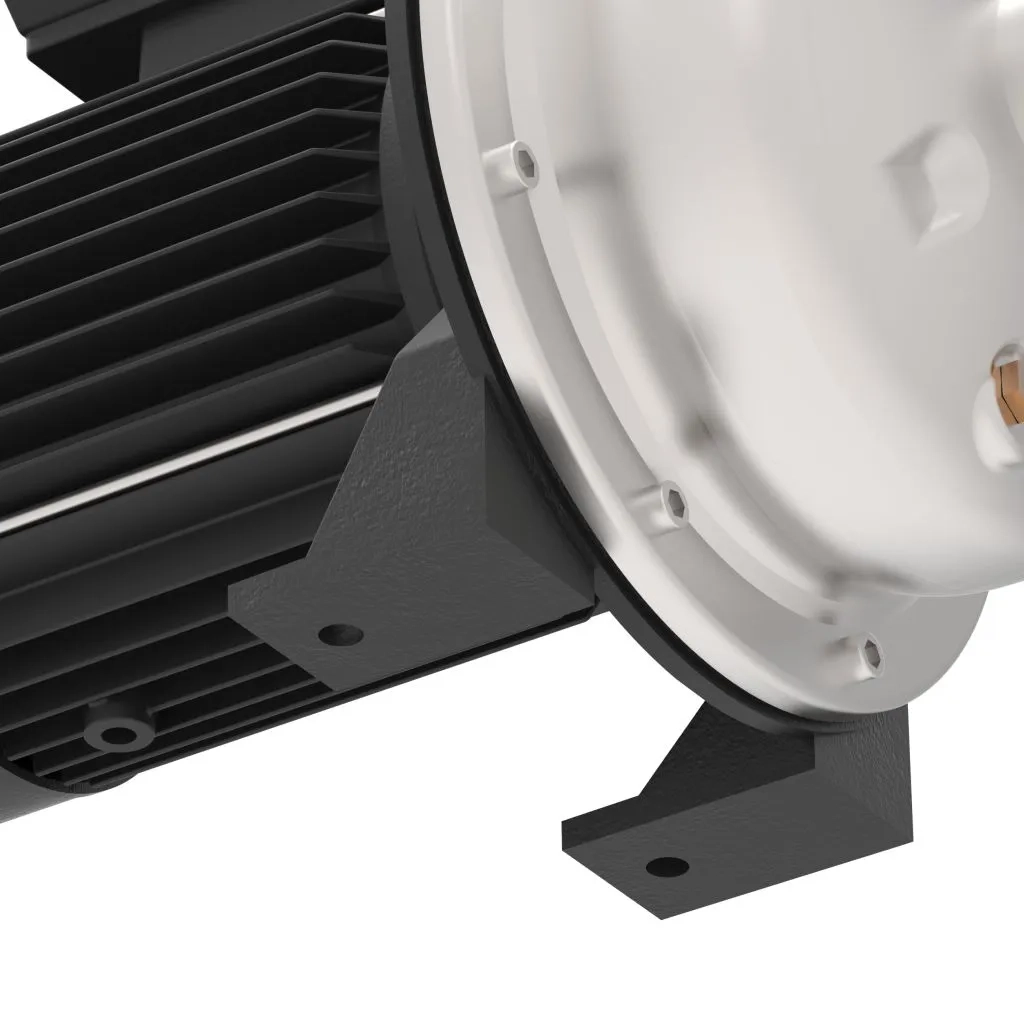

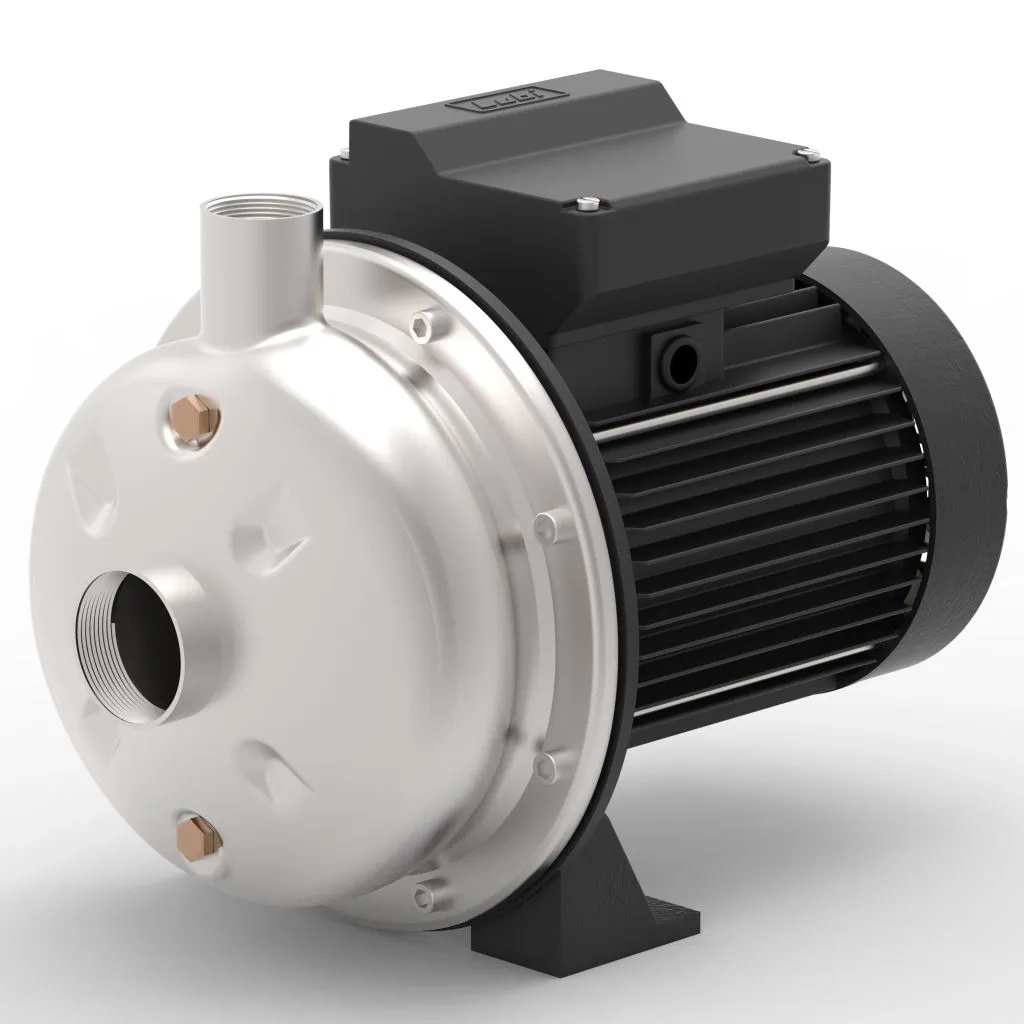

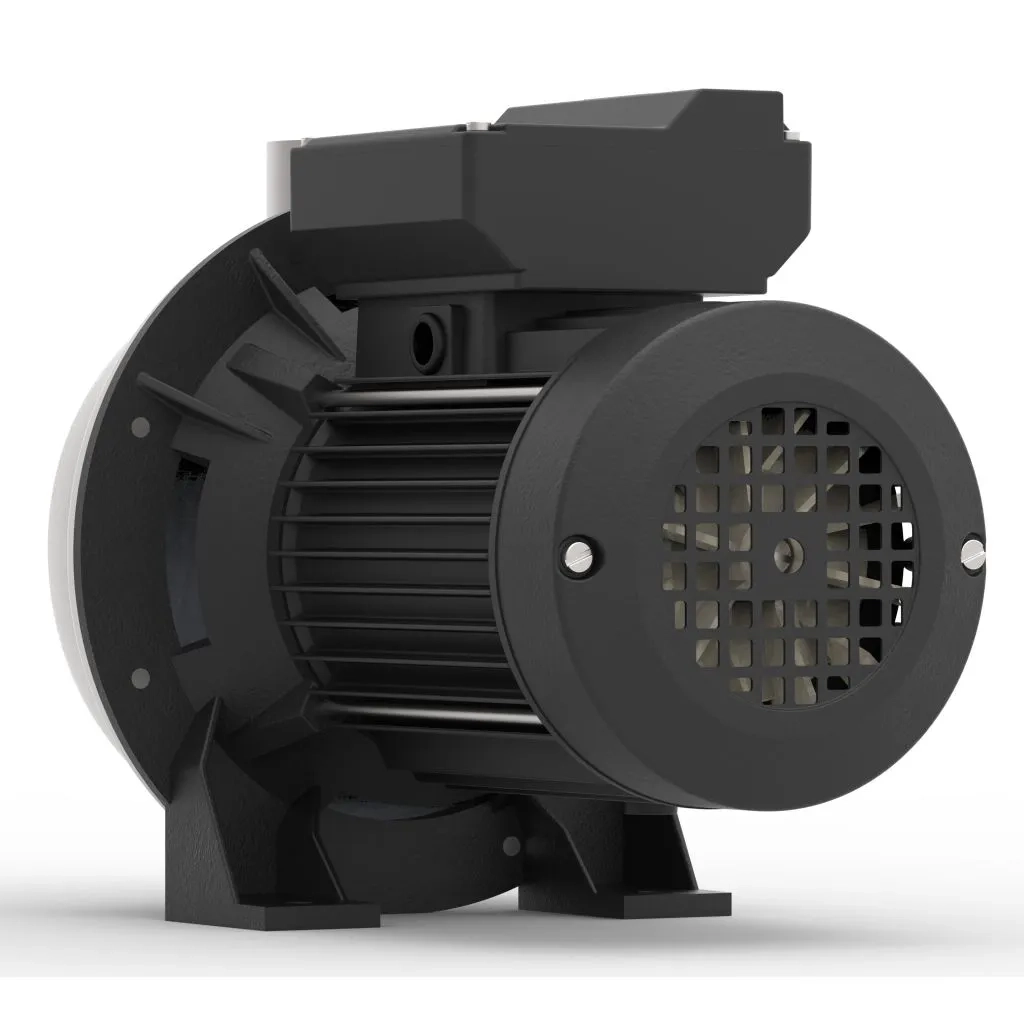

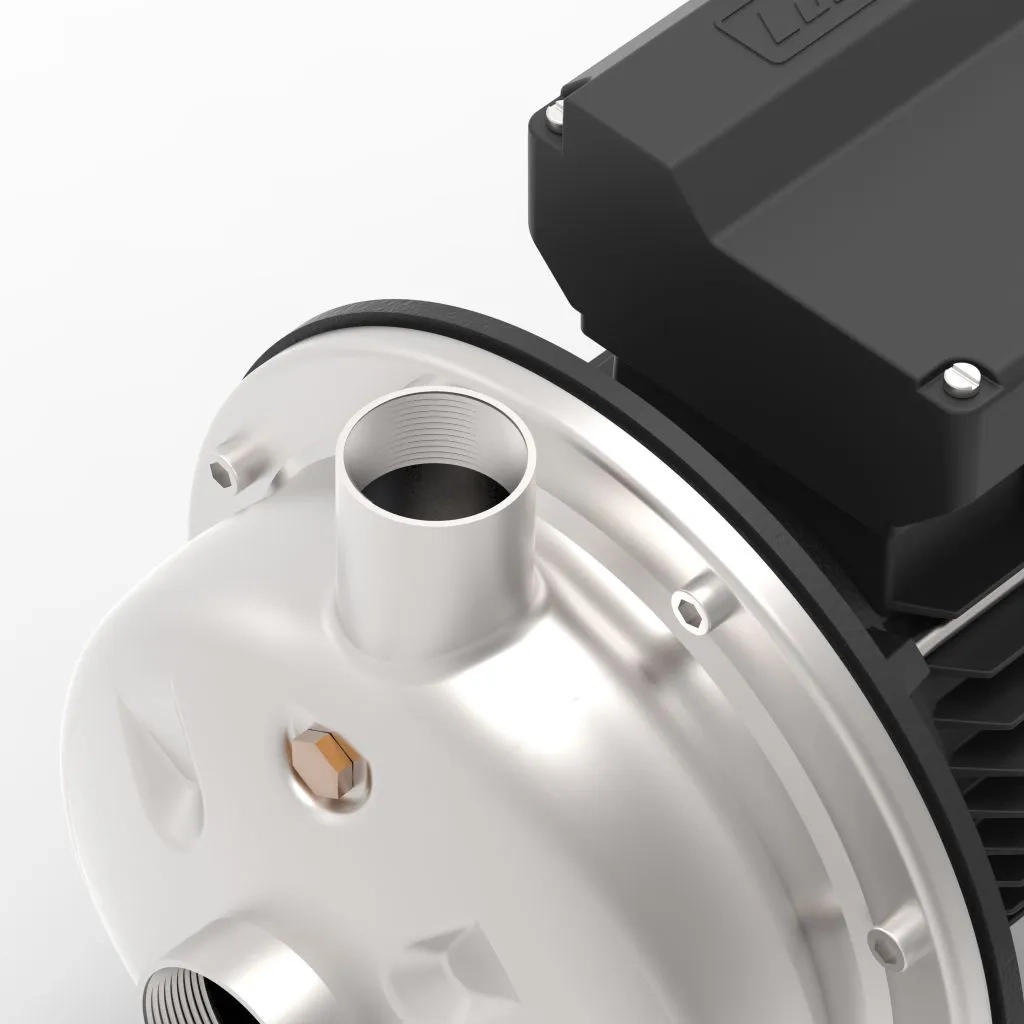

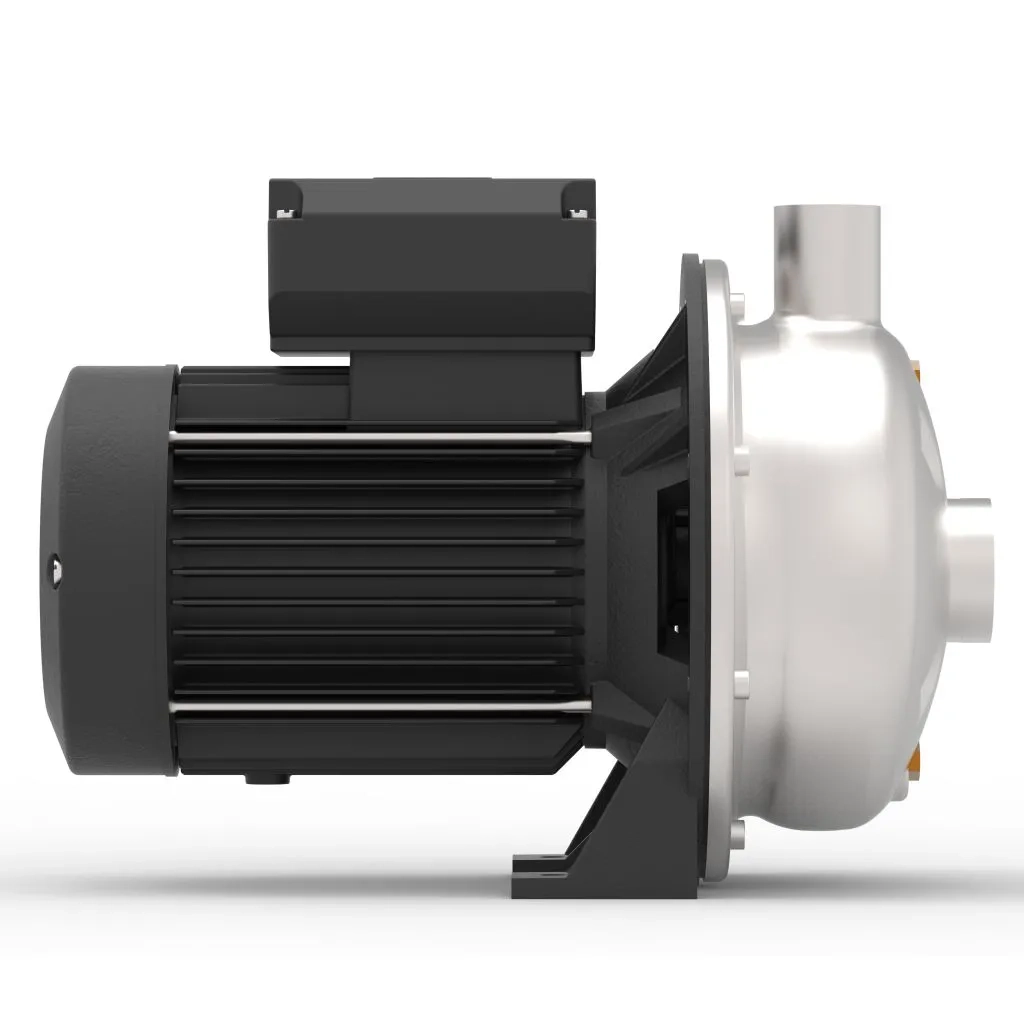

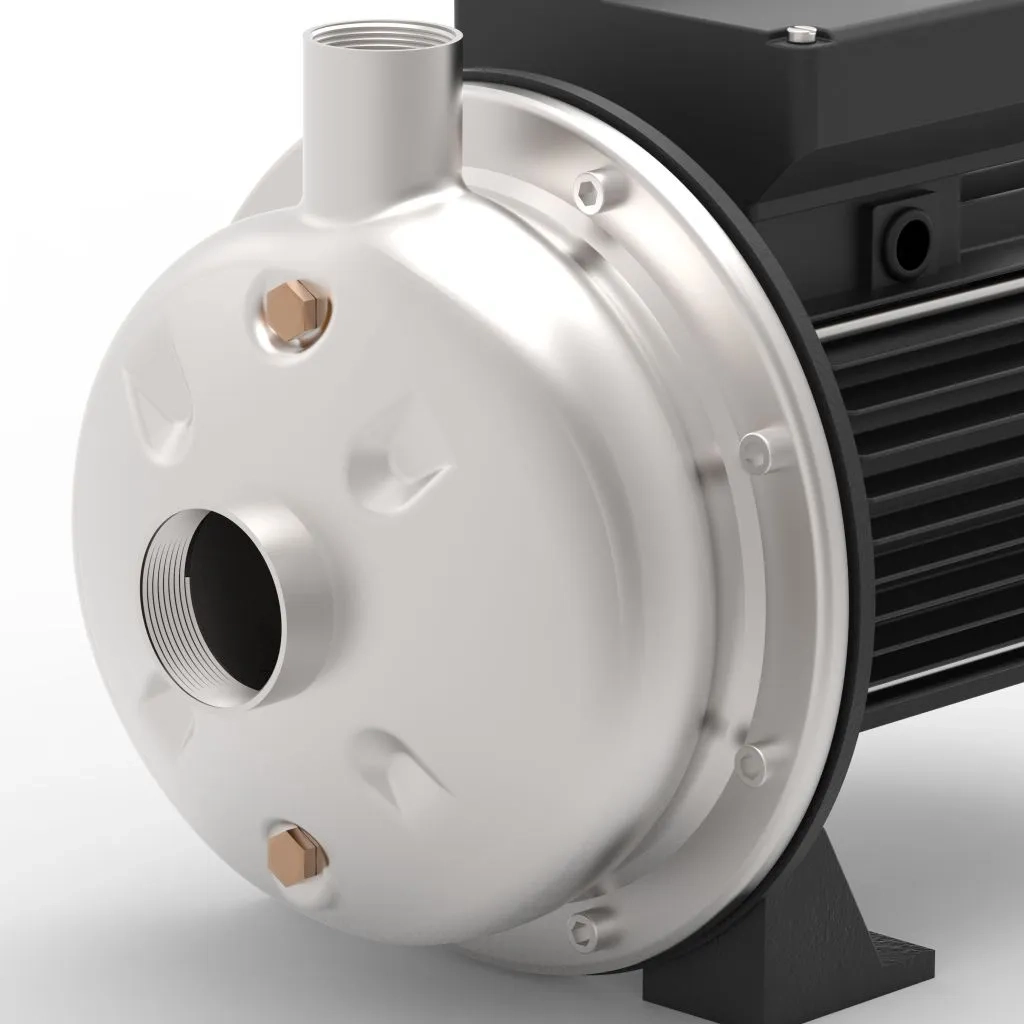

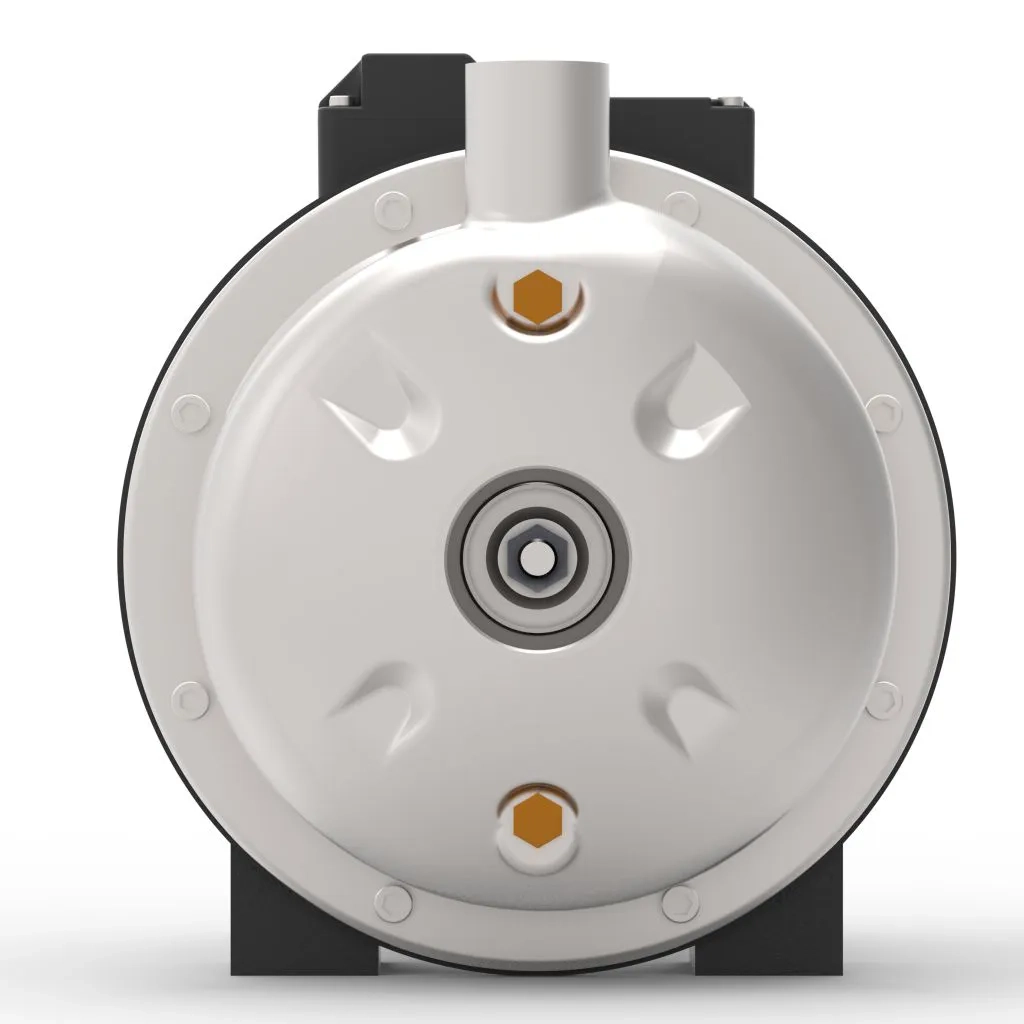

Horizontal centrifugal pumps (MXF series)

Features

  • The pump casing shall be fabricated from AISI 304 stainless steel sheet metal and shall have axial suction and radial discharge port.
  • The pumps shall have closed type impeller with material of construction of AISI 304 stainless steel sheet metal.
  • The Pump shaft sealing will be by mechanical shaft seal of Carbon/Ceramic/NBR/AISI 304 construction suitable for 10 bar pressure rating and water temperature from 0 to +90 deg. C.
  • The Motor will be suitable for 1 phase, 230volts, 50 Hz (Standard Supply), 3 phase, 415volts, 50 Hz.
  • All Fabricated stainless steel pump components shall be manufactured in house by the manufacturing company.

Variety & Range

  • Flow range: up to 10.5 m³/h
  • Head range: up to 36 metres
  • Rating: 1 phase – 0.37 to 1.50 kW & 3 phase – 0.37 to 1.50 kW
  • Rated speed: 2900 rpm

Applications

Lawns & Garden

Restaurants

Water Supply

Hotels

Resorts

Chemical Industry
