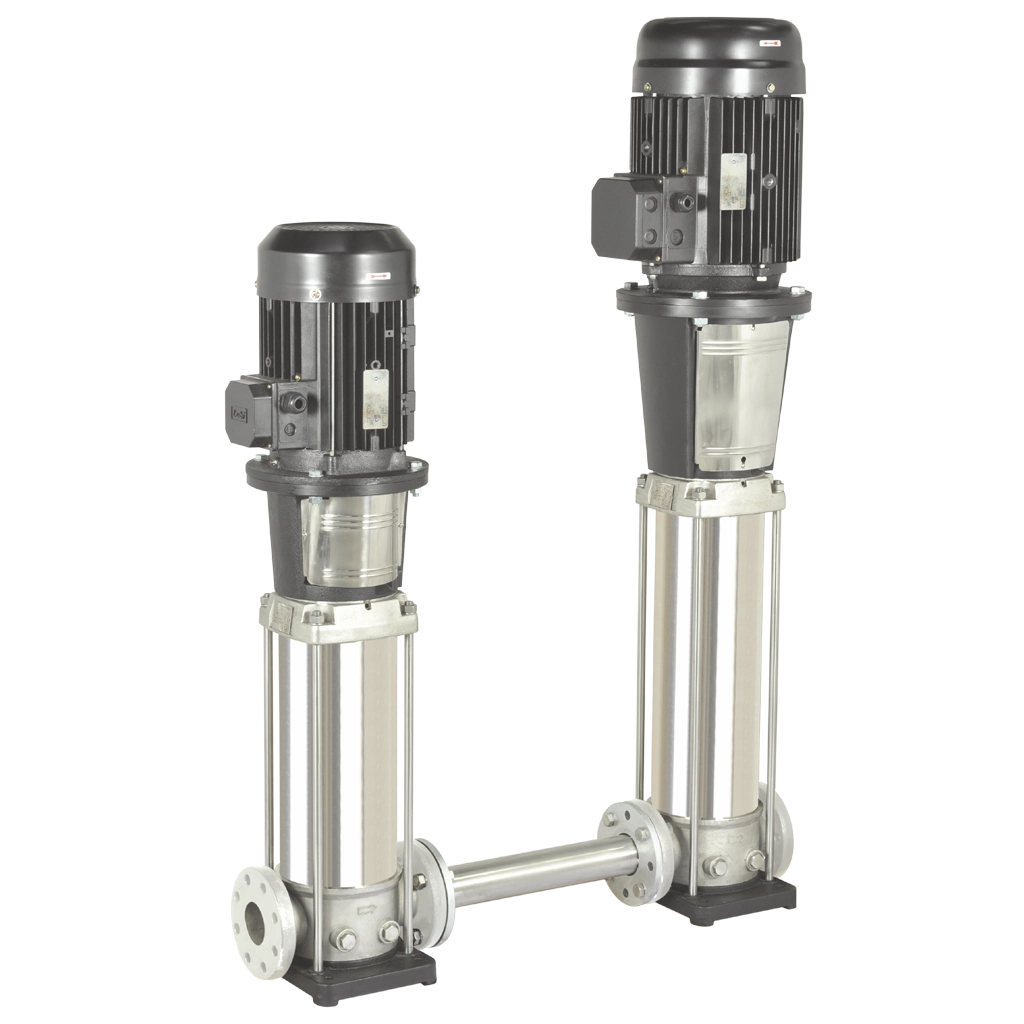

High-pressure Vertical multistage inline pumps (LCRH and LCRNH series)


  • The pump casing shall have material of construction of Cast Iron FG 260 (standard supply) or CF8 (AISI 304), inline suction and discharge port, closed type impeller, stainless steel shaft.
  •  The Pump mechanical shaft seal with following material suitable for 16 bar pressure rating.
  •  The pump suction and delivery flange connection shall be as per PN 16 standard up to 16 bar pump shut off pressure and as per PN25 for pumps with shut off pressure above 16 bar.
  •  The pump shall be coupled with a Totally Enclosed Fan Cooled (TEFC) type induction motor, with F class insulation, S1 duty and IP55 protection, 3 phase, 415volts, 50 Hz and 60 Hz power supply.
  •  The pump construction should enable the rotating parts to be removed and serviced without dismantling the suction and discharge pipe work.

Variety & Range

  • Flow range: 0.8 to 180 m³/h
  • Head range: up to 500 metres
  • Rating: 1 phase – 0.37 to 2.2 kW 3 phase – 0.37 to 75 kW
  • Rated speed: 2900 rpm


Water Supply

Fire fighting
