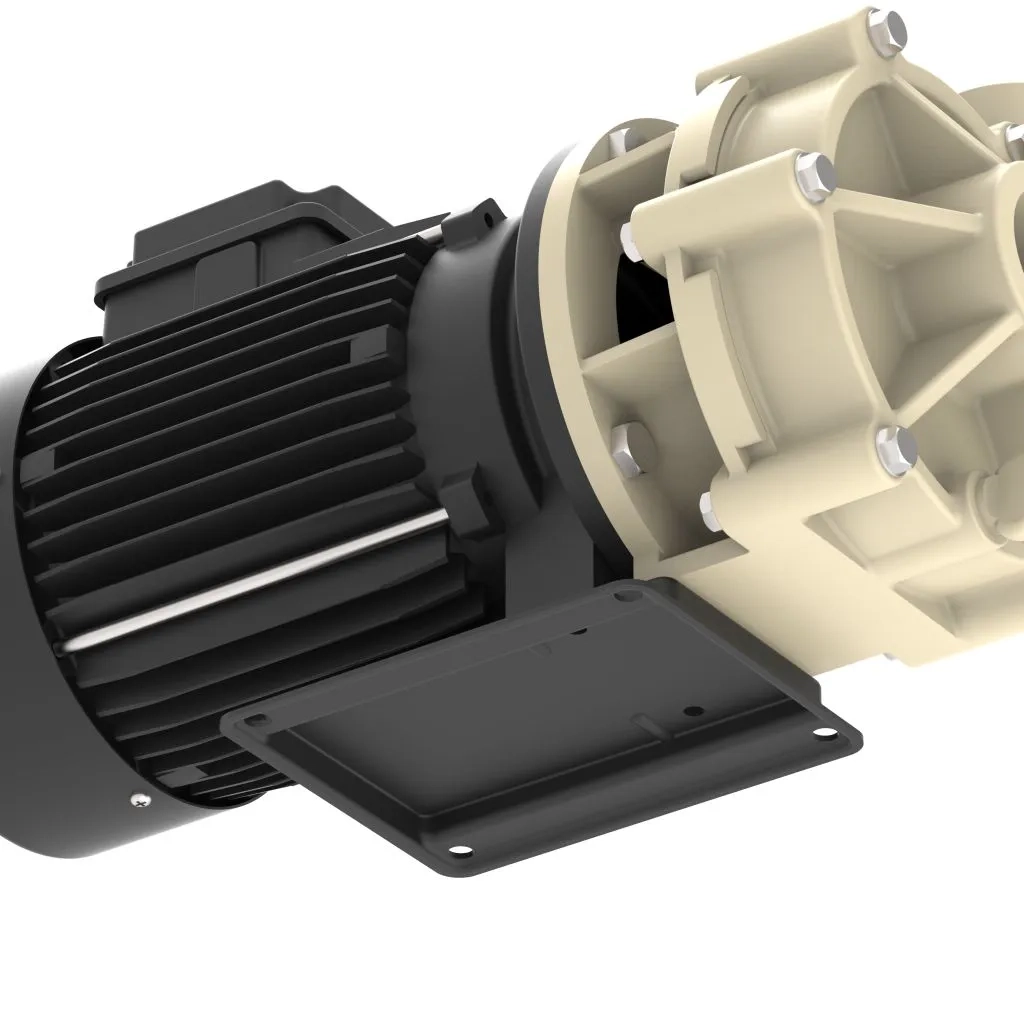

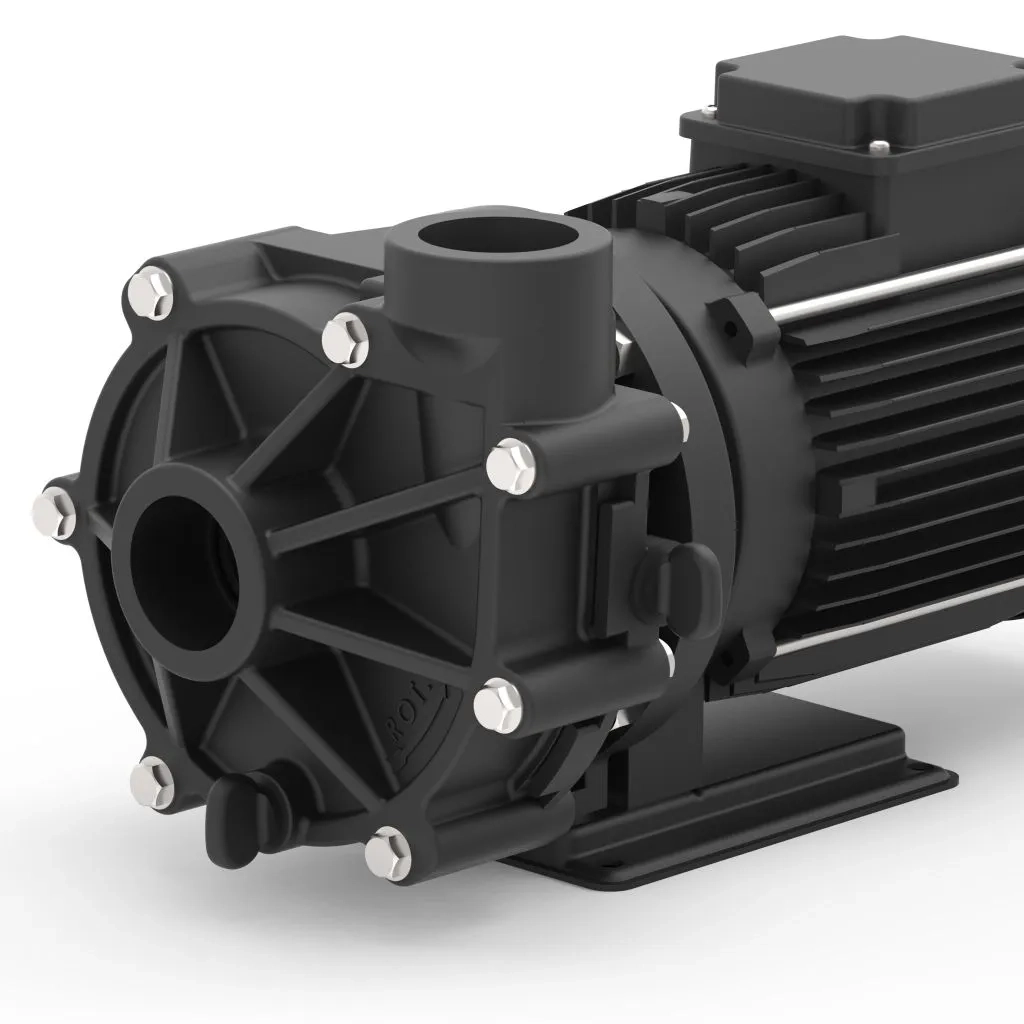

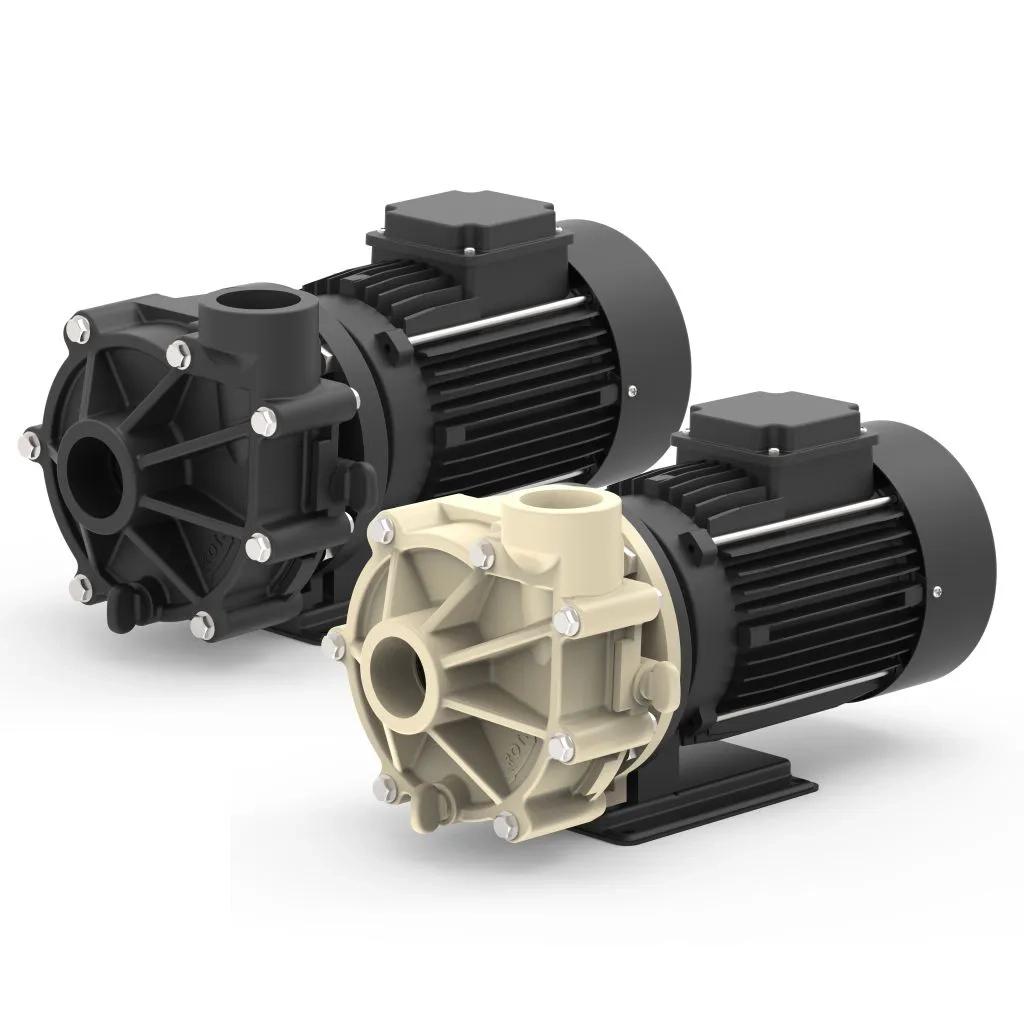

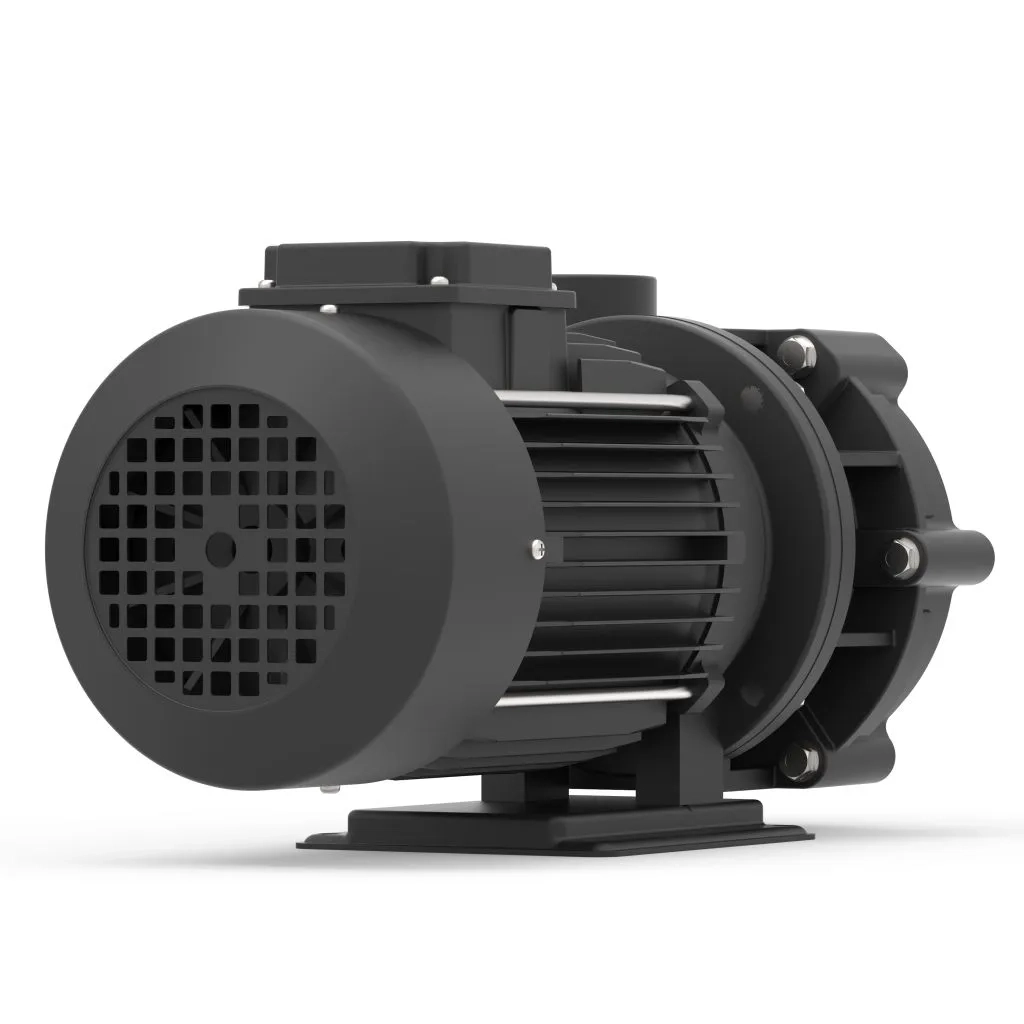

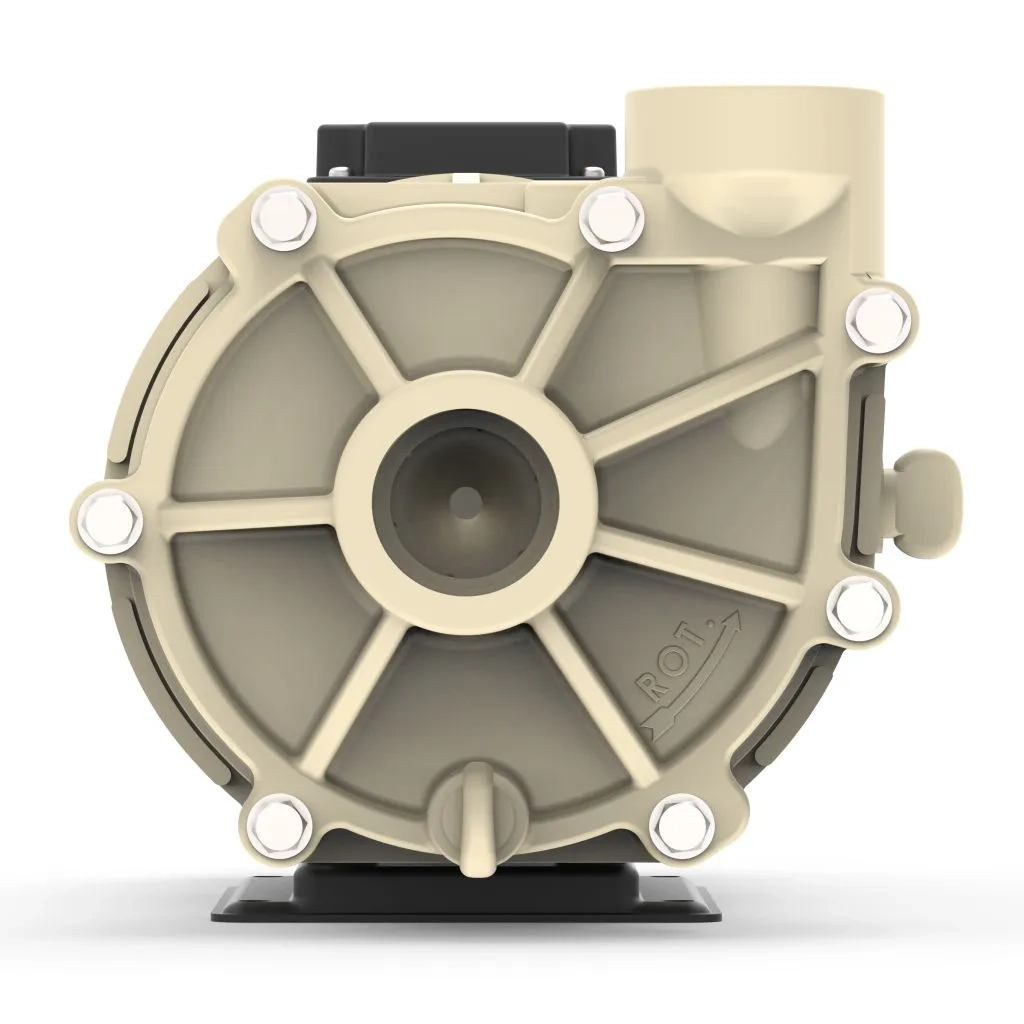

Corrosion Resistant Thermoplastic Pumps (LN, LP series)


  • These pumps shall be available in Noryl or Polypropylene material of construction and closed coupled with standard TEFC motor. They are also available as long-coupled with standard TEFC as well as Flame Proof motor.
  • The pumps shall be made of Noryl, which is non-metallic and chemical-resistant to most acids, alkalis, and inorganic solvents.
  • The pumps are made of non-metallic, glass-filled Polypropylene construction offering chemical resistance to most acids, alkalis, and inorganic solvents as does the Noryl series.
  • The pump shall be close coupled with a totally enclosed fan cooled type, 2900 rpm Induction motor with F class insulation, S1 duty and IP55 protection. 1 phase, 230 volts, 50 Hz (Standard Supply), 3 phase, 415 volts, 50 Hz

Variety & Range

  • Flow range: up to 22.5 m³/h
  • Head range: up to 22 metres
  • Rating: 1 phase – 0.37 to 2.20 kW & 3 phase – 0.37 to 2.20 kW
  • Rated speed: 2900 rpm



Oil & Gas

Chemical Industry
