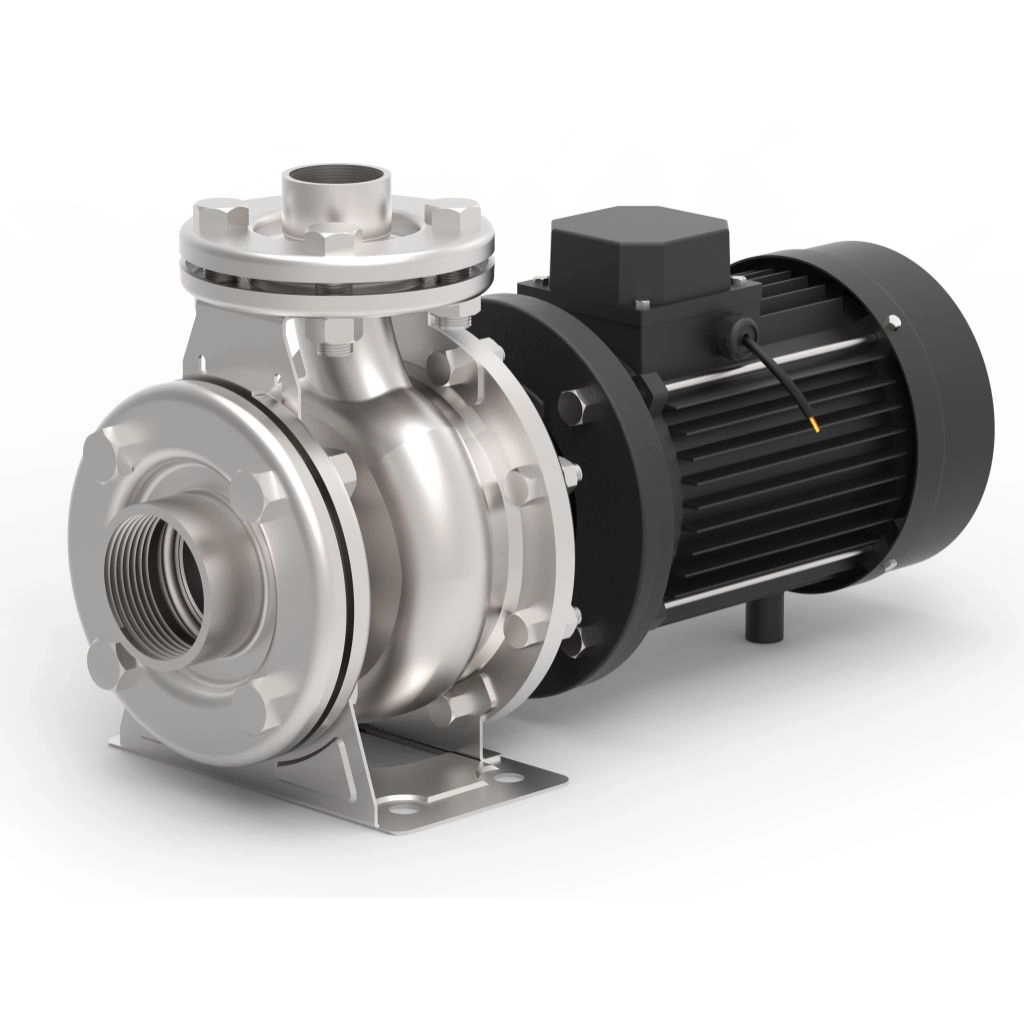

Close-coupled stainless steel centrifugal pumps (LCS series)
- The pump casing, impeller and shaft shall have material of construction of fabricated AISI 304 sheet metal.
- The Pump shaft sealing will be by mechanical shaft seal of Carbon/SiC/Viton/AISI 316 construction suitable for 10 bar pressure rating and water temperature from 0 to +140 deg. C.
- The pump shall be close coupled with a totally enclosed fan cooled type (TEFC) Induction motor, with F class insulation, S1 duty and IP55 protection, suitable for 3 phase, 415 volts, 50 and 60 Hz power supply.
- The pump shall have back pull out design so as to enable the rotating parts to be removed and serviced without dismantling the suction and discharge pipe work.
Variety & Range
- Flow range: up to 120 m³/h
- Head range: up to 57 metres
- Rating: 1.1 to 22 kW
- Rated speed: 2900 rpm
