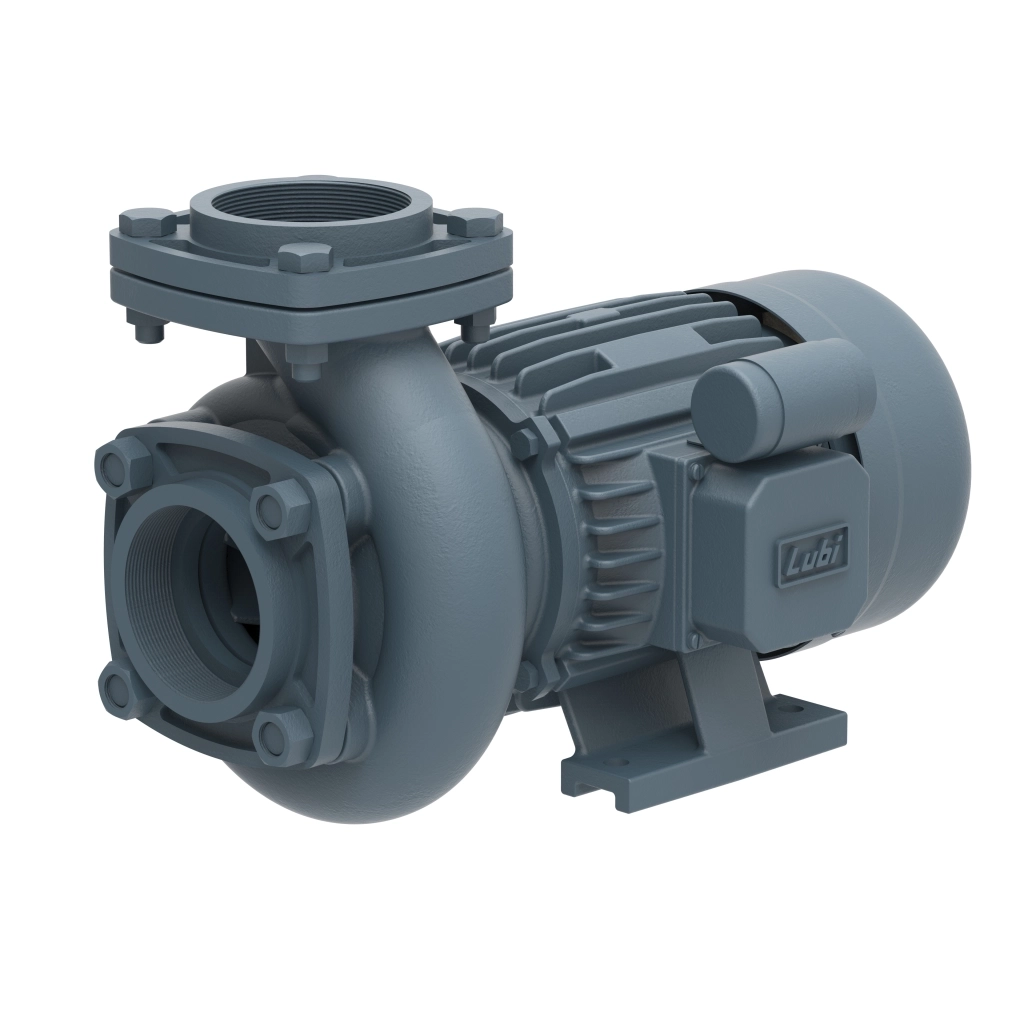

Centrifugal Monoblock Pumpsets (MDH series)

Download Brochure

Features

  • The laminations are non-oriented silicon steel & confirms to IS-648.
  • Volute, Impeller, Adaptor, Stator body, Endshield shall be made of close grained cast iron of high tensile strength and has a very smooth surface finish resulting in low friction losses.
  • Motor windings shall be vacuum impregnated with synthetic varnish for better moisture resistance.
  • Superior mechanical shaft seal for longer life and effective sealing against water leakage.
  • The electric rotor is pressure die cast & uses electric grade aluminium.
  • Grease Lubricated anti-friction ball bearings shall be fitted at both ends to withstand radial and axial loads.
  • They are precisely machined on modern machine tools to give you years of reliable operation.
  • Better insulating materials are used so that pumpset can with stand high temperature rise.

Variety & Range

  • Flow range: up to 1035 LPM
  • Head range: up to 42 metres
  • Rating: 0.37 to 2.2 kW
  • Rated speed: 2900 rpm

Applications

Water Supply

Domestic

Irrigation

Industries

Hotels

Resorts
