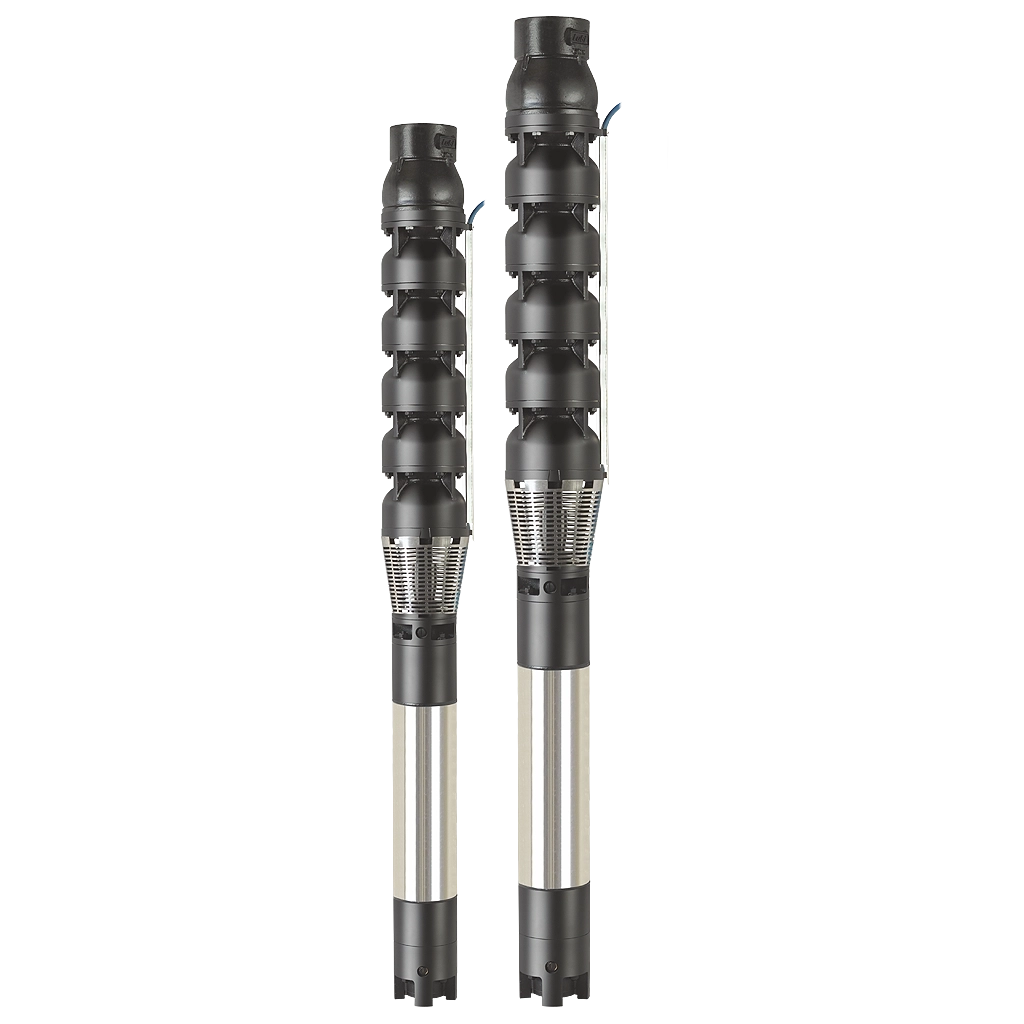

7″ Water Filled Borewell Submersible Pumpsets (LSR series)

Download Brochure

Features

  • All components are manufactured from materials as per Indian Standard Specifications. They are precisely machined on modern machines, Including CNC machines to give you years of reliable operation.
  • The motors are designed to start at low voltage & working in a wide voltage fluctuation.
  • Motors have well designed sleeve and thrust bearings for longer life.
  • Motor Stator & Rotor are vaccum impregnated and coated properly to ensure corrosion resistance.
  • High operating efficiencies of pumpset result into high water discharge rate and lower power consumption.
  • All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
  • The Pumpsets are compact and slim and can be easily installed in narrow wells.
  • Power consumption & operating cost is less due to high pump efficiency.
  • All pumps are equipped with a reliable non-return valve to reduce water hammer & Friction losses.

Variety & Range

  • Flow range: up to 144 m³/h
  • Head range: up to 140 metres
  • Rating: 3.70 – 18.5 kW
  • Rated speed: 2900 rpm

Applications

Apartments

Water Supply

Domestic

Irrigation

Industrial

Commercial Buildings
